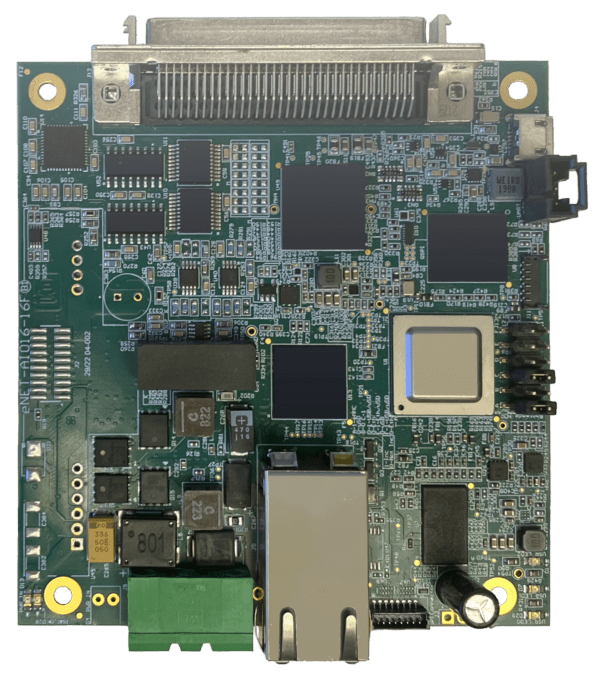

Ethernet 16 Channel, 12 Bit, 100 kHz, Analog Input, Four Analog Output Module
This product is RoHS-compliant
Please contact us if you require a non-RoHS version.
Please note, Acces I/O products are often available in an array of different options, of which only a selection will be displayed here. Please contact us for pricing if you require a product option that is not shown on our website.
The ENET-AIO16-16F Ethernet Multifunction Module (and its variants) is an ideal solution for adding portable, easy-to-install high-speed analog and digital I/O capabilities to any computer or Ethernet network. The board is plug-and-play auto-detecting.
The eNET-AIO16-16F is a 16-bit resolution A/D board capable of sampling speeds up to 1MHz for its 16 single-ended or 8 differential analog inputs. Each channel can be independently software configured to accept 8 different input ranges. A unique, real-time internal calibration system allows the card to continually compensate for offset/gain errors giving a more accurate reading. Additional features include 16 digital I/O lines and 4 (optional) analog outputs.
This small, compact, multifunction I/O board provides the user with everything needed to start acquiring, measuring, analyzing, and monitoring in a variety of applications. The eNET-AIO16-16F data acquisition board can be used in many current real-world applications such as embedded equipment monitoring, precision PC-based and portable environmental measurements, and mobile data acquisition. The board is designed to be used in rugged industrial environments but is small enough to fit nicely onto any desk or testing station. The board is PC/104 sized (3.550 by 3.775 inches) and ships inside a steel powder-coated enclosure with an anti-skid bottom.
OEM ETH/104 FORM FACTOR
The OEM (board only) version is perfect for a variety of embedded applications. What makes the OEM option unique is that its PCB size and mounting holes match the PC/104 form factor (without the bus connections). The board can be added to any PC/104 type stack by connecting it to an available 10/100/1000 base T port typically available on embedded CPU form factors such as EPIC, and PC/104. It can also be installed using standoffs inside other enclosures or systems.
Applications
- Industrial Automation
- Embedded OEM
- Portable DAQ
- Laboratory
- Home Automation
- Kiosks
ACCESSORIES
Available accessories include a broad range of ribbon cables, screw terminal boards, ADC submultiplexer boards for higher channel-count, and more. Special order items such as conformal coating, custom software, and more, are also available.
SOFTWARE
Because of Ethernet„s ubiquitous nature these boards are supported for use in all operating systems including Windows, Linux, Unix, iOS, Android, even Raspberry PI, etc. The software package includes free Linux and Windows software with sample programs and source code in C# and Delphi for Windows. Also provided is a graphical setup program in Windows and extensive Ethernet-packet level API documentation. Third party application support includes a Windows standard DLL API usable from most popular application programs. Embedded OS support includes Windows Embedded Standard, and all applications, operating systems, and PLCs and all other devices capable of TCP/IP communication.
Analog Inputs
| ADC Type | Successive approximation |
| Resolution | 16-bit differential bipolar ADC |
| Sampling rate | 1 Msps aggregate |
| Number of channels | 16 Single-Ended or 8 Differential inputs software control) |
| Ranges | 0-1V, 0-2V, 0-5V, 0-10V, ±1V, ±2V, ±5V, ±10V (software selectable) |
| Int Nonlinearity Error | 0.0011% FS |
| No Missing Codes | 16 bits |
| Input Impedance | 1MO |
| A/D Start Sources | Software Start, Timer Start, External Start, Externally Triggered Timer Start |
| A/D Start Types | Single Channel or Scan |
| Overvoltage Protection | -40 to +40V |
| Crosstalk | -53dB @ 1MHz -84dB @ 500kHz |
Analog Outputs
| Number | 4 |
| Type: | Single-ended |
| Resolution: | 16-bit |
| Bipolar Ranges: | ±5V, ±10V (factory configured) |
| Unipolar Ranges: | 0-5V, 0-10V (factory configured) |
| Settling Time | 20us typical, +/-10V (+/-1LSB at 16 bits) |
| Output Current | max ±10mA per channel |
Digital Input / Output Interface
| Digital Bits | 16, individually direction controllable | |
| Digital Inputs | Logic High Logic Low |
0.7V x V_DIO to 5.5V -0.5V to 0.3V x V_DIO |
| Digital Outputs | Logic High Logic Low |
2.0V (min) 24mA source 0.5V (max) 24mA sink |
I/O Interface Connectors
| On card | 68pin SCSI female .050 Series, Amplimite, PN 1761028-4 |
Power
| Power required, PoE | |
| Power required, External | 12VDC to 30VDC @ TBD |
Environmental
| Temperature | Operating | 0°C to +70°C -40°C to +85°C (-T option) |
| Storage | -40°C to +105°C | |
| Humidity | 5% to 95% RH, non-condensing | |
| Dimensions | PC/104 format | 3.550 by 3.775 w/mounting holes |
