Displayport

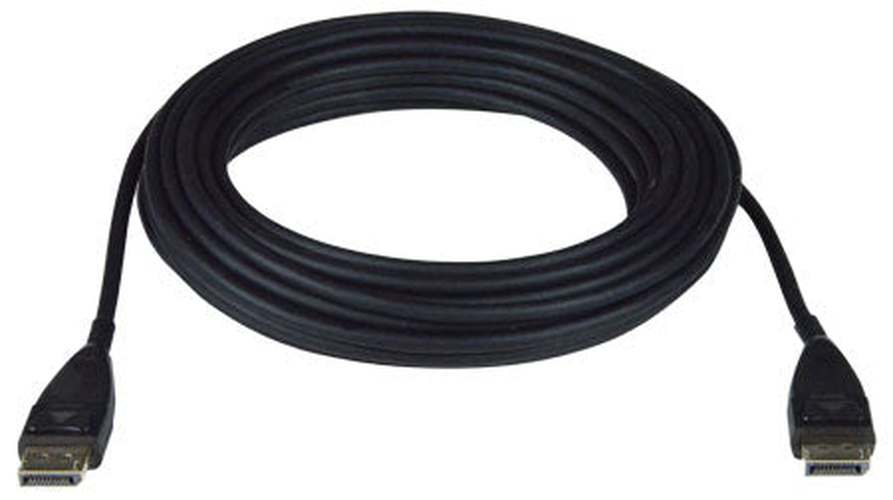

8K DisplayPort 1.4 Plenum Active Optical Cable 25 metres

NTI

DP8K-FOCMP-25M-MM

EU CUSTOMERS PLEASE NOTE:

Import duties, taxes and any additional delivery or clearance charges, are not included in the item price or the quoted shipping cost. These charges are the responsibility of the Buyer.

Please check with your local customs office to determine any additional charges prior to purchase.

Continue Shopping or View Cart

  • The XTENDEX® 8K DisplayPort Plenum Active Optical Cable locates an Ultra-HD 8K 4320p 60Hz DisplayPort display up to 100 meters (328 feet) from a video source. Using optical fiber, the DP8K-FOCMP-xxM-MM provides high reliability DisplayPort signal transmission with zero signal loss in high noise environments.

    • High speed and long distance transmission by optical system up to 100 meters (328 feet). Hybrid cable containing both fiber optic and copper cores.
    • Supports resolutions up to Ultra-HD 8K (7680x4320) @60Hz, 4Kx2K (4096x2160 and 3840x2160) @120Hz, and HDTV 1080p @240Hz.
    • No loss of signal delivering crystal clear digital images instantly.
    • No external power required.
    • DisplayPort features supported: DisplayPort 1.4, Up to 16-bit Color and 48-bit Deep Color, BT.2020, YCbCr 4:4:4, and YCbCr 4:2:2, High-bandwidth HBR3; Bandwidth up to 8.1Gbps per channel (32.4Gbps total); DSC 1.2 display stream compression; FEC forward error correction; HDR; 32 audio channels.
    • HDCP 2.2 compliant.
    • Optical fibers immune to signal noise.
    • Low RFI/EMI for sensitive applications.
    • Supports Plug-n-Play specification.
    • EDID learning for the support of any DisplayPort display device.
    • Thin and ultra-lightweight construction.
    • CMP-rated flame-retardant plenum PVC jacket.
    • Ideal solution for many applications, including: Digital Signage, Medical Imaging Equipment, Airplane On-board Video System, Home Theater, TV Broadcast Station, Conference Room Video Equipment
  • Product Datasheet
    • Connectors: Male DisplayPort connectors.
    • Resolutions: supports resolutions up to Ultra-HD 8K (7680x4320) @60Hz, 4Kx2K (4096x2160 and 3840x2160) @120Hz, and HDTV 1080p @240Hz.
    • Supports HDCP 2.2/1.4
    • Video bandwidth: 8.1Gbps per channel (32.4Gbps total)
    • Cable Diameter: 4.8mm (0.189 in)
    • Connector Width: 21mm (0.827 in)
    • Bend Radius: up to 48mm (1.89 in)
    • CMP-rated flame-retardant plenum PVC jacket.
    • Available lengths: 20/25/30/50/100 meters
    • Use two cables in parallel to support Dell Ultra Sharp UP3218K 8K monitor.
    Environmental
    • Operating temperature: 32 to 122°F (0 to 50°C)
    • Storage temperature: -4 to 185°F (-20 to 85°C).
    • Operating and storage humidity: 5% to 85% non-condensing RH.
    Regulatory Approvals
    • CE, FCC, RoHS
    Warranty
    • Two years

Category: 8k, aoc, displayport, gs-cable-nti

Type: Cable

Vendor: NTI
