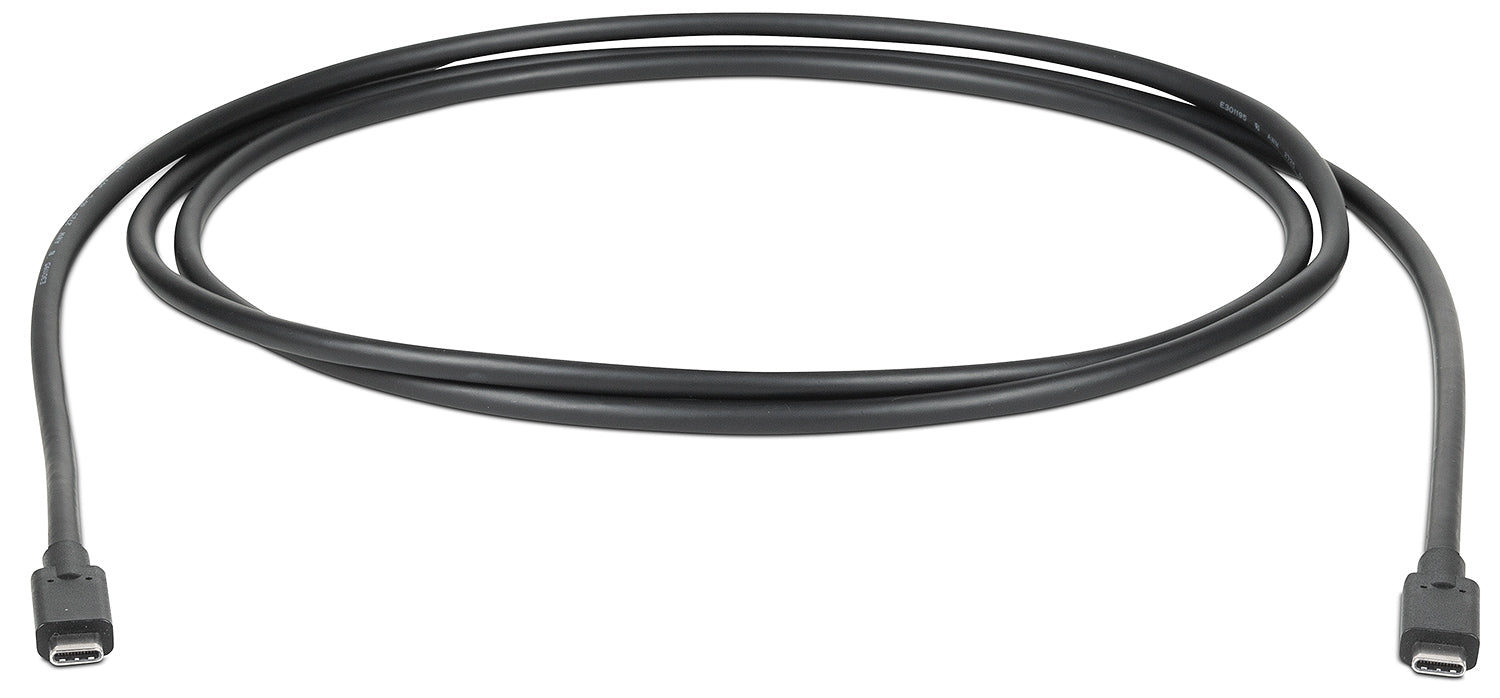

USBC Plus/6 - USB-C® 20 Gbps Cable with 8K Video and 240 W Power Delivery, 6.5' (2 m)

USBC Plus/6 - USB-C® 20 Gbps Cable with 8K Video and 240 W Power Delivery, 6.5' (2 m)

SKU 26-755-06
by Extron

For Extron Prices, please contact our Technical Sales Team on +00 44 (0)1202 872771 or email us at sales@itm-components.co.uk

The Extron USBC Plus is a USB-C cable for simultaneous transmission of video, audio, data, and power. It supports DisplayPort Alt Mode 8K video with USB 2 data rates, and 4K video with USB data rates up to 20 Gbps. Additionally, bidirectional 240 watt USB Power Delivery capability enables powering of phones, external drives, and laptops. It includes Multi-Stream Transport (MST) support, allowing multiple monitors to be operated concurrently from a single USB-C source output. The USBC Plus is ideal for applications that require a multi-functional, high-performance connection between USB-C equipped devices.

Features

  • USB-C cable supports video, audio, data, and power simultaneously
  • Supports USB data rates up to 20 Gbps
  • DisplayPort Alt Mode supports up to 8K
  • 8K video support with USB High-Speed data rates: 8K video over four high-speed lanes for a total of 32.4 Gbps (8.1 Gbps per lane)
  • USB High-Speed over the USB 2 lane
  • 4K video support with USB 20Gbps data rates: 4K video over two high-speed lanes for a total of 16.2 Gbps (8.1 Gbps per lane)
  • USB 20Gbps over two high-speed lanes
  • USB High-Speed over the USB 2 lane
  • USB Power Delivery up to 240 watts - Supports various voltage profiles up to 48 volts at 5 amps, thus able to charge a range of devices.
  • Bidirectional USB power flow - When connected to USB devices that support USB PD, power flows both ways, enabling either the host or the peripheral to provide power to the far-end device.
  • Multi-Stream Transport - MST support - The cable supports MST, which allows multiple monitors to be operated simultaneously from a single USB?C source output.
  • Integrated e-marker - Ensures safe and efficient data transfer and power delivery
  • Supports EDID and HDCP transmission
  • Compatible with Thunderbolt 3 devices
  • Reversible USB-C connectors
  • Silver-coated conductors for each high-speed lane enhance cable performance
  • Gold-plated contacts — Contacts do not tarnish, maintaining a long-lasting, reliable electrical connection.
  • Optional LockIt® Plus cable lacing brackets — Securely fastens USB?C or HDMI cables to a device, eliminating risk of disconnection.
  • Compatible with AVEdge and Cable Cubby® surface access enclosures
  • 6.5' (2 m) cable length
