Partition Sensor
For Extron Prices, please contact our Technical Sales Team on +00 44 (0)1202 872771 or email us at sales@itm-components.co.uk

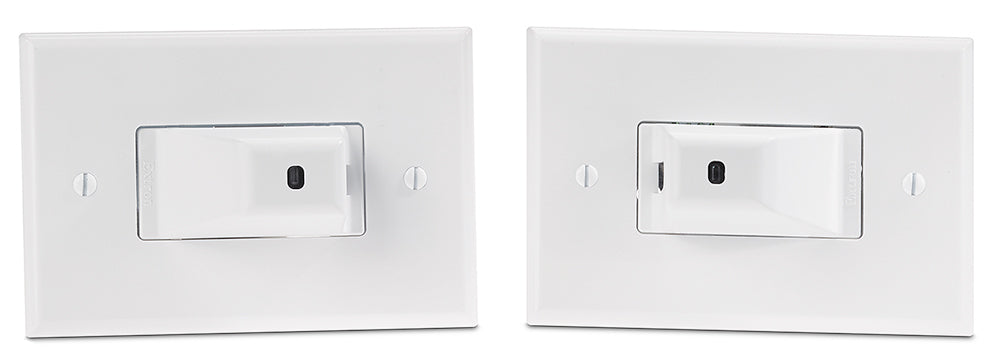

The Extron ECM S10 is a partition sensor set designed to automate AV system behavior based on the position of a movable wall. The set connects to any Extron Pro Series device equipped with a digital I/O or eBUS port. It uses an infrared beam to sense the position of a movable partition wall within divisible rooms. The ECM S10 receiver offers a digital output port and a 14 VDC output to provide power to the transmitter. For convenient integration, eBUS control modules, like the ECM S10 are linked to the control processor or to other eBUS devices using a single cable that carries both power and communication. The ECM S10 mounts in two US single gang, Flex55, EU, or MK junction boxes and includes white oversized decorator-style wallplates.
Features
- Partition sensor set that automates system behavior based on the position of a moveable wall within divisible rooms
- eBUS port — Allows for easy connection to an eBUS device or IPCP Pro control processor.
- Digital output — Allows for integration with non-eBUS compatible systems that have digital I/O ports.
- 14VDC output on receiver is used to power the transmitter
- DIP switches are used to set unique eBUS device addresses and minimize setup time
- eBUS-enabled receiver connects to the control processor using a single cable that carries both power and communication
- Compatible with all Extron IPCP Pro control processors and other products featuring a digital I/O
- Various eBUS diagnostic LEDs provide connection, communication, and ID status for troubleshooting
- Receiver module has adjustable sensitivity and logic output state controls
- Removable captive screw connectors allow for quick installation
- Transmitter and Receiver can be positioned up to 10 feet (3 meters) apart
- Includes two white oversized decorator-style wallplates and mud rings
- Mounts in US single gang, Flex55, EU, or MK junction boxes
