8-Input HDMI & RS-232 over DGKat Card
SKU DGKat-IN8-F64
by Kramer
Original price
£2,836.00
-
Original price
£2,836.00
Original price
£2,836.00
£2,836.00
-
£2,836.00
Current price
£2,836.00
-

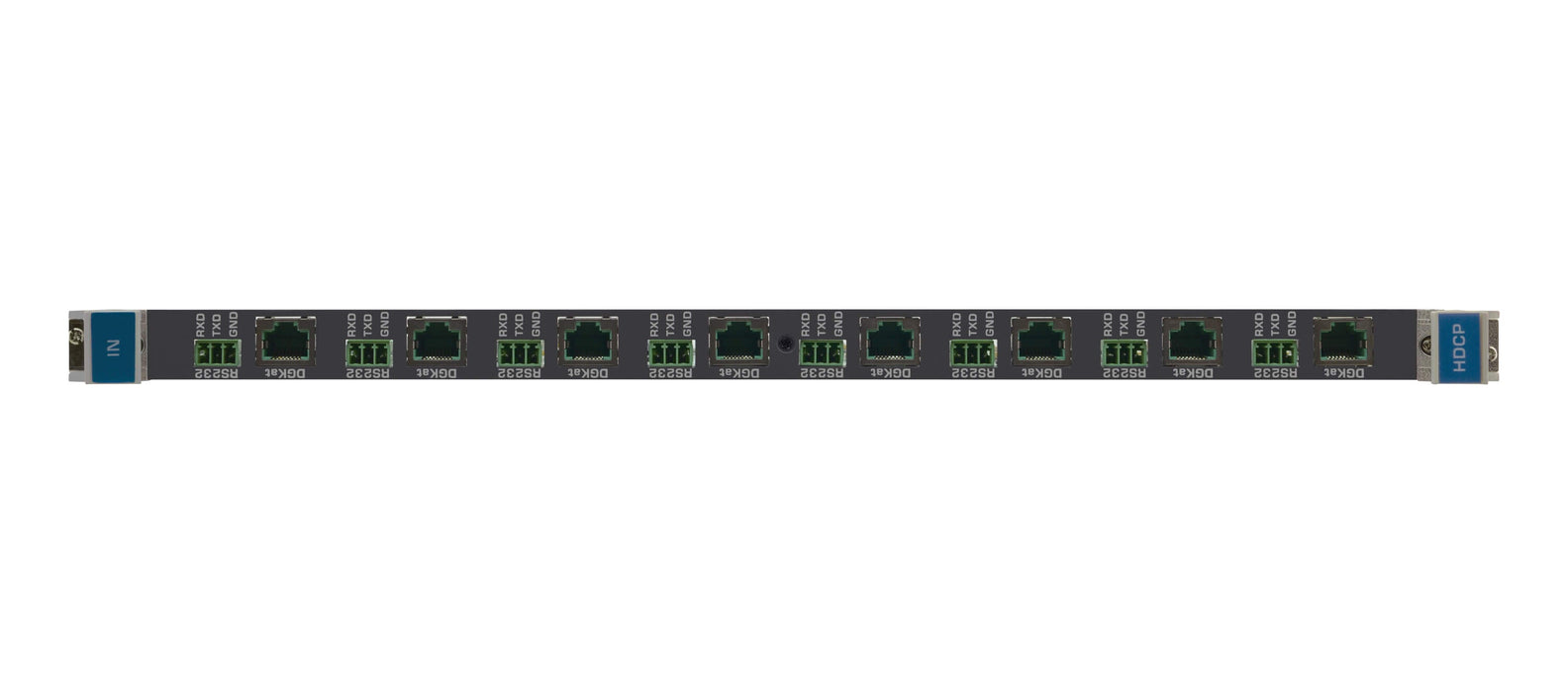

DGKat-IN8-F64 is an eight-channel HDMI and RS?232 over DGKat twisted pair input card for the VS-6464 Series Modular Multi-Format Digital Matrix Switchers. The DGKat-IN8-F64 inputs four HDMI and RS-232 signals to the chassis.
- Max. Data Rate š� 4.95Gbps.
- System Range š� Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
- HDMI and HDCP Compliant.
- DGKat¾¢ Signal Integration.
- 3D Pass Through.
- Bidirectional Local RS 232 Port.
- Kramer Equalization & re Klocking Technology.
- Power Connect System š� For supplying power to compatible TP transmitters.
-
- INPUTS 8 TP ports on RJ 45 connectors, 8 serial ports on 3 pin terminal blocks
- BANDWIDTH PER CHANNEL Video š� 1.65Gbps ; Serial Data š� 19200
- TOTAL BANDWIDTH Video š� 4.95Gbps ; Serial Data š� 19200
- MAXIMUM RANGE 90m (300ft) š� 1080i@60Hz
- POWER CONSUMPTION 45W
- 3D PASS THROUGH Supported
- STANDARDS COMPLIANCE HDCP 1.4, HDMI 1.3a
- OPERATING TEMPERATURE 0° to +40°C (32° to 104°F)
- STORAGE TEMPERATURE 40° to +70°C ( 40° to 158°F)
- HUMIDITY 10% to 90%, RHL non condensing
- SAFETY REGULATORY COMPLIANCE CE, FCC
- ENVIRONMENTAL REGULATORY COMPLIANCE Complies with appropriate requirements of RoHs and WEEE
- PRODUCT DIMENSIONS 39.50cm x 18.00cm x 2.00cm (15.55" x 7.09" x 0.79" ) W, D, H
- PRODUCT WEIGHT 0.5kg (1.1lbs) approx.
- SHIPPING DIMENSIONS 47.70cm x 23.50cm x 4.80cm (18.78" x 9.25" x 1.89" ) W, D, H
- SHIPPING WEIGHT 0.8kg (1.8lbs) approx.
