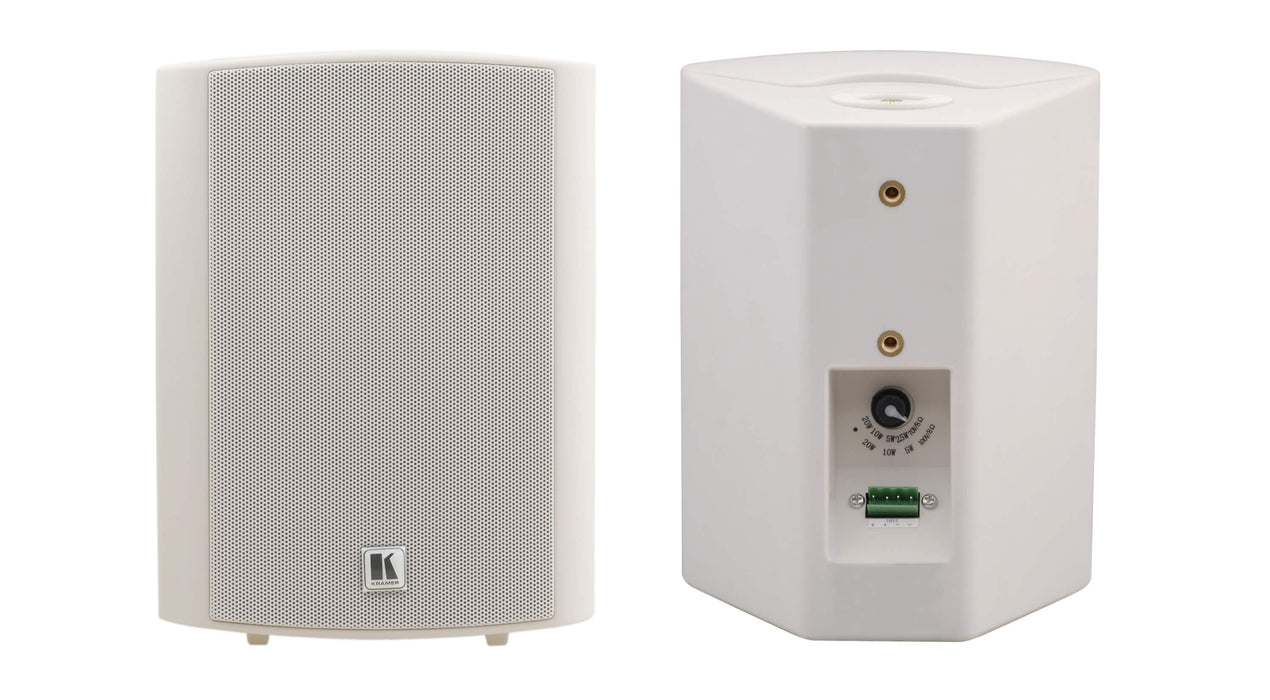

Galil 5-O 5.25Inch, 2Way OnWall Speakers
-
The Galil 5O Onwall Speaker features a multitap power transformer for selecting 8ohm (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation. Available in white.
- Type š� 2way onwall speaker. Woofer š� 5.25 inch� polypropylene cone.
- Tweeter š� 0.5 inch� Mylar dome.
- Impedance š� 8 ohm.
- Power Handling š� 30W RMS, 80W continuous program.
- Transformer Taps š� 70V š� 20W/10W/5W/2.5W/Off (LoZ), 100V š� 20W/10W/5W/Off (LoZ).
- Package š� 2 speakers (1 pair).
-
DESCRIPTION 2way onwall speakers
FREQUENCY RESPONSE 80Hz to 20kHz @10dB, 100Hz to 20kHz @±3dB
WOOFER 5.25 inch� (133mm) polypropylene cone
TWEETER 0.5 inch� (13mm) Mylar
IMPEDANCE 8ohm (transformer tap in off position)
TRANSFORMER TAPS 70V š� 20W/10W/5W/2.5W/Off (LoZ), 100V š� 20W/10W/5W/Off (LoZ)
SENSITIVITY 89dB 1W @1m
MAX SPL Continuous: 103dB, peak: 106dB
POWER HANDLING 30W RMS, 80W continuous program
CROSSOVER FREQUENCY 7.2kHz
DIRECTIVITY FACTOR (Q) 4.0, averaged 1kHz to 10kHz
DIRECTIVITY INDEX (DI) 6.0 dB averaged 1kHz to 10kHz
INPUT CONNECTORS Terminal blocks
MATERIALS Frame, grill and brackets steel cabinet ABS
OPERATING TEMPERATURE 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE 40° to +70°C (40° to 158°F)
HUMIDITY 10% to 90%, RHL noncondensing
WEIGHT PER SINGLE SPEAKER 2kg (4.4lbs) approx
WEIGHT WITH MOUNTING KIT 2.4kg (5.3lbs) approx
SHIPPING WEIGHT (FOR PAIR) 4.8kg (10.6lbs) approx
DIMENSIONS WITH MOUNTING BRACKETS 18.5cm x 16.7cm x 27cm (7.28 inch� x 6.6 inch� x 10.6 inch�), W, D, H
INSTALLATION CLEARANCE Front panel to wall (with mounting bracket): 21cm (8.2 inch�), back panel to wall (with mounting bracket): 4.5cm (1.8 inch�)
ACCESSORIES 2 mounting brackets (including 4 knobs and 4 mounting screws)
OPTIONS BCP2S speaker cable
COLOR Available in white
