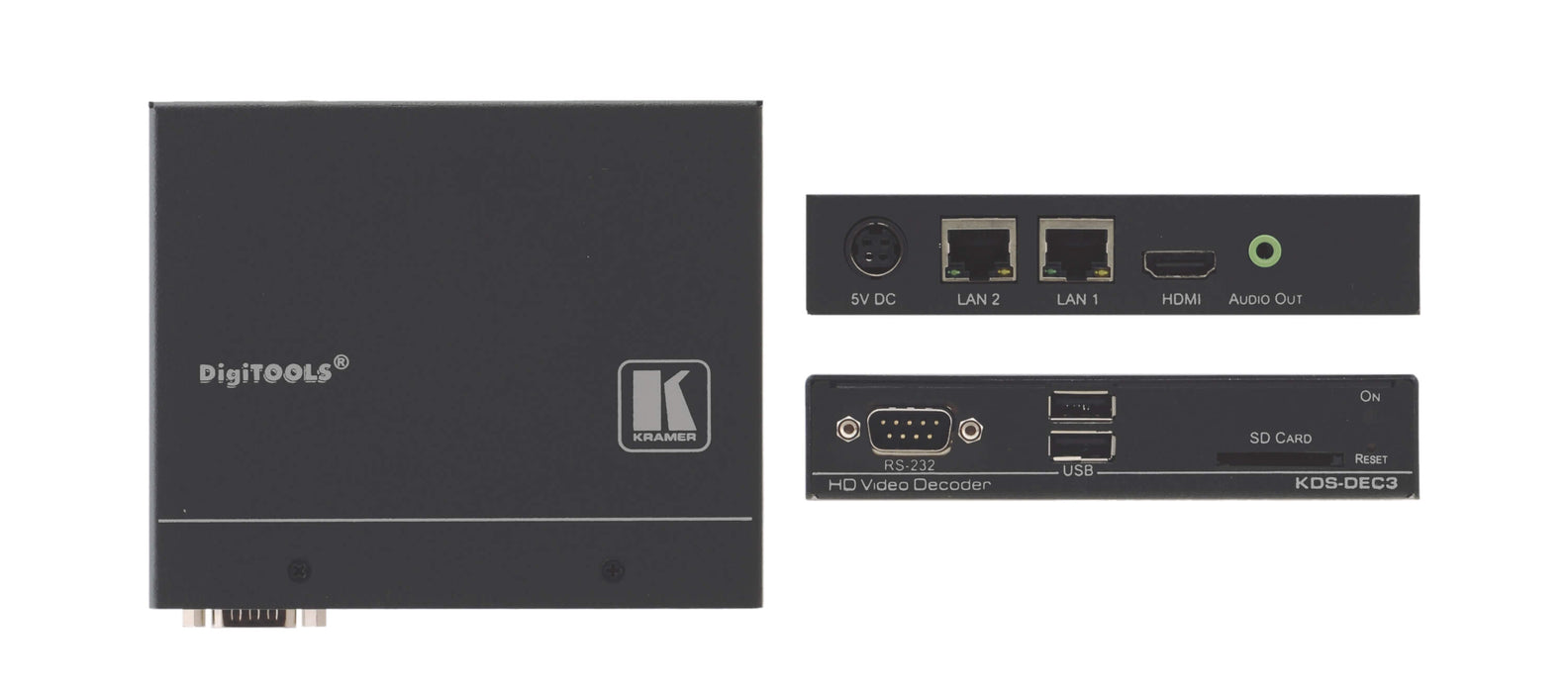

KDS-DEC3 H.264 Decoder
-

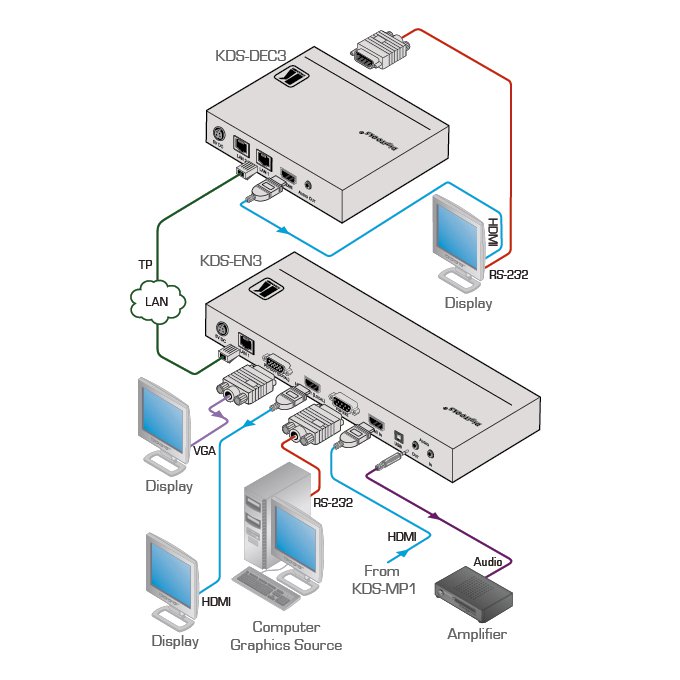

Kramer KDSDEC3 is an H.264 decoder for encoded signals up to 1080p60. It is designed to work with the KDSEN3 H.264 encoder to provide a highquality and fullyfeatured endtoend video and audio over IP solution.
- AVC Support � MPEG4 using H.264 & AAC codecs.
- Scaling & Cropping Features � For flexible display of source content on the decoder output.
- Standard Ethernet Network Operation � 10/100/1000Mb.
- DecoderIntegrated Network Switch � Allows for KDSDEC3 daisy chaining and network extension.
- Video Support � HDMI.
- Audio Support � HDMI or analog.
- Streaming Support � Unicast and multicast through RTSP (Real Time Streaming Protocol).
- KDSEN3 Manager Software � Allows remote management of the KDSEN3 network including autodetection and discovery of KDSEN3/KDSDEC3 units on a subnet.
- Failsafe Video Playback � When a decoder loses its connection to an encoder.
- RS232 Virtualization � From encoder to decoder.
-
OUTPUTS 1 HDMI, 1 unbalanced stereo audio on a 3.5mm mini jack
PORTS 2 Ethernet on RJ45 connectors (fully switched), 1 RS232 on a 9pin Dsub connector
VIDEO SINGLE CHANNEL HD Up to 1920x1080p60 and 1920x1200(60Hz)
COMPRESSION STANDARD H.264/Mpeg4 Part 10 (AVC)
PROFILES Baseline, Main, High
LEVELS Up to 4.2
BIT RATES 100Kbps to 25Mbps 96, 128, 192, and 256Kbps
RATE CONTROL CBR, VBR, adjustable GOP (Group Of Pictures) size
AUDIO COMPRESSION STANDARD MPEG4 AACLC
CHANNELS 2 channel (stereo), HDMI with digital LPCM audio
ANALOG SAMPLE FREQUENCY 32, 44.1, and 48kHz
OUTPUT RESOLUTIONS 1920ƒš�1200, 1920ƒš�1080, 1680ƒš�1050, 1600ƒš�1200, 1600ƒš�900, 1440ƒš�900, 1400ƒš�1050, 1360ƒš�768, 1280ƒš�1024, 1280ƒš�960, 1280ƒš�720, 1024ƒš�768, 800ƒš�600, 720ƒš�576, 720ƒš�480, and 640ƒš�480
POWER CONSUMPTION 5V DC, 3A max
OPERATING TEMPERATURE 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE 40° to +70°C (40° to 158°F)
HUMIDITY 10% to 90%, RHL noncondensing
DIMENSIONS 23.2cm x 13.6cm x 10cm (9.1" x 5.4" x 3.9")
INCLUDED ACCESSORIES Power supply, power cord, plastic bracket set
PRODUCT DIMENSION 21.50cm x 10.00cm x 2.60cm (8.46" x 3.94" x 1.02" ) W, D, H
PRODUCT WEIGHT 0.3kg (0.6lbs) approx.
SHIPPING DIMENSION 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H
SHIPPING WEIGHT 1.2kg (2.6lbs) approx.
-
