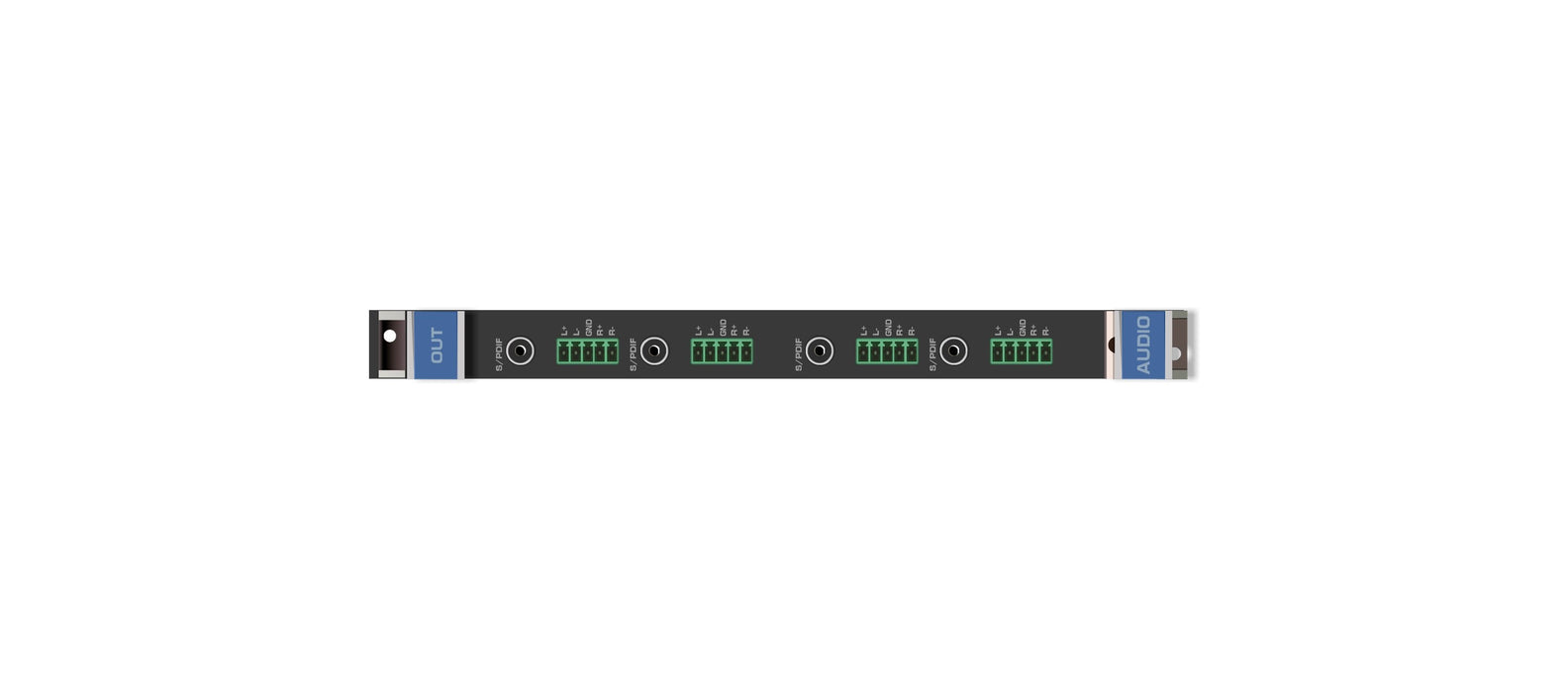

4-channel Analog & Digital Audio Output Card

AAD-OUT4-F32 is a four-channel analog and digital output card for the VS-3232 Series Modular Multi-Format Digital Matrix Switchers. The AAD-OUT4-F32 outputs four analog and digital signals from the chassis.

• PORTS 4 S/PDIF (digital audio) on RCA connectors, 4 balanced audio stereo (analog audio) on 5 pin terminal blocks
• TOTAL BANDWIDTH Analog ( 3db): >100kHz, Digital: 32kHz š� 192kHz sample frequency
• POWER CONSUMPTION 10W
• OPERATING TEMPERATURE 0° to +40°C (32° to 104°F)
• STORAGE TEMPERATURE 40° to +70°C ( 40° to 158°F)
• HUMIDITY 10% to 90%, RHL non condensing
• SAFETY REGULATORY COMPLIANCE CE
• ENVIRONMENTAL REGULATORY COMPLIANCE Complies with appropriate requirements of RoHs and WEEE
• PRODUCT DIMENSIONS 22.00cm x 18.80cm x 2.00cm (8.66" x 7.40" x 0.79" ) W, D, H
• PRODUCT WEIGHT 0.3kg (0.7lbs) approx.
• SHIPPING DIMENSIONS 25.00cm x 22.50cm x 5.50cm (9.84" x 8.86" x 2.17" ) W, D, H
• SHIPPING WEIGHT 0.5kg (1.1lbs) approx.
