2-channel 4K60 4:2:0 HDMI over Extended Reach HDBaseT Input Card with Selectable Embedded or Deembedded Analog Audio

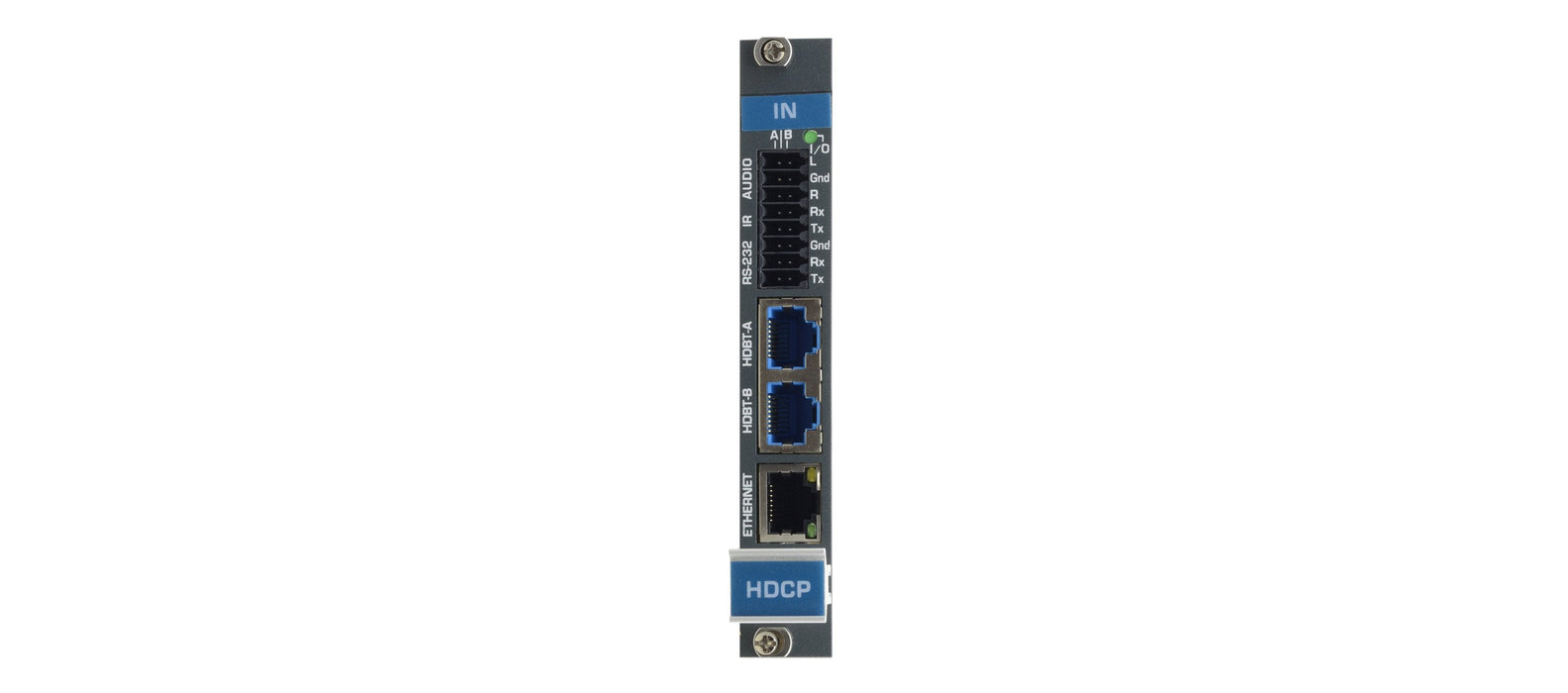

DTAxr-IN2-F16 is a 2-channel 4K60 4:2:0 HDMI, analog audio, bidirectional RS-232, Ethernet, & IR over HDBaseT twisted pair receiver card for the VS?1616 Series Modular Multi-Format Digital Matrix Switchers. DTAxr-IN2-F16 inputs two extended reach HDBaseT signals with selectable embedded/de embedded analog audio, bidirectional RS-232, Ethernet, and IR from the line to the chassis.

• Max. Data Rate š� 10.2Gbps (3.4Gbps per graphics channel).
• Max. Resolution š� 4K@60Hz (4:2:0).
• Analog Audio Embedding/De embedding š� On the same jack
• HDBaseT Technology š� HDTV compatible, HDCP compliant.
• System Range š� Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables.
• Ethernet Extension š� Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
• Bidirectional RS 232 Extension š� Serial interface data flows in both directions, allowing data transmission and device control.
• Bidirectional Infrared Extension š� IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
• 3D Pass Through.
