Product Datasheet

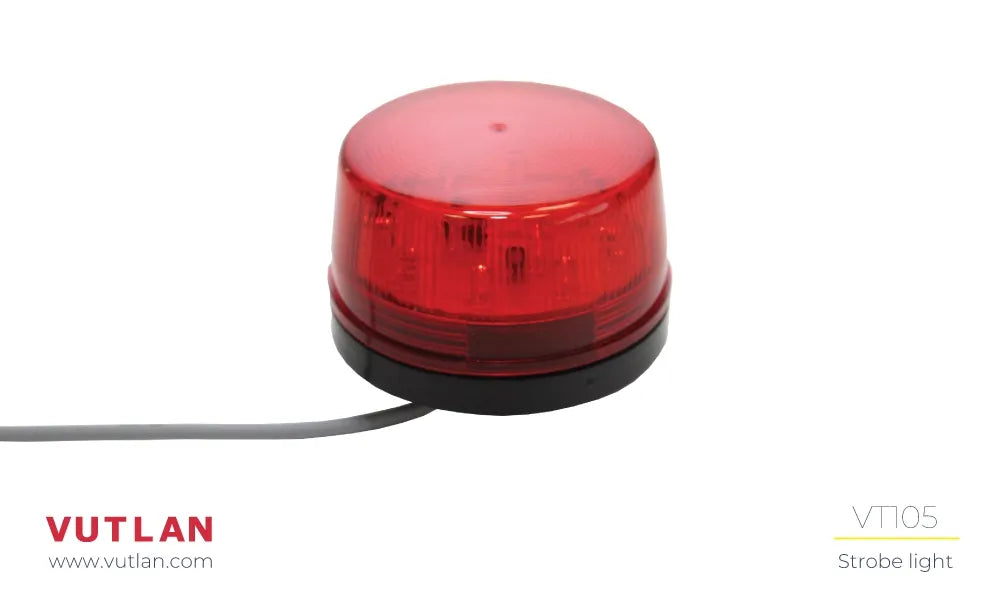

VT105 LED strobe light is a 12V DC device for light flashing in case of warnings and alarms.

Connects to 12V DC, 0.25A electronic relay output of Vutlan monitoring systems. Can be configured to sound/light an alarm if an alarm event has been triggered.

Can be used with 3rd party controllers.

Specifications

• Used for: VT105 is a LED Security Alarm powered by 12V relay outputs.
• Flashing frequency: 90/Min
• Input: 2-wire cable (red/black)
• Output: LED source
• Operating temperature: Min. -50 °C - Max.105 °C
• Operating humidity: Min. 5% - Max. 95% (Non-Condensing)
• IP rating standard: IP54
• Voltage: 12V DC
• Rated current: 120mA
• Power consumption: 1 Watt
• Dimensions: ?73.5mm, Height 45.5mm, cable length 3m
• Mounting: Wall or ceiling mounting, cabinet top or side
• Casing: Color: red and white;
• Material: plastic
• Components: Manufactured in E.U.
