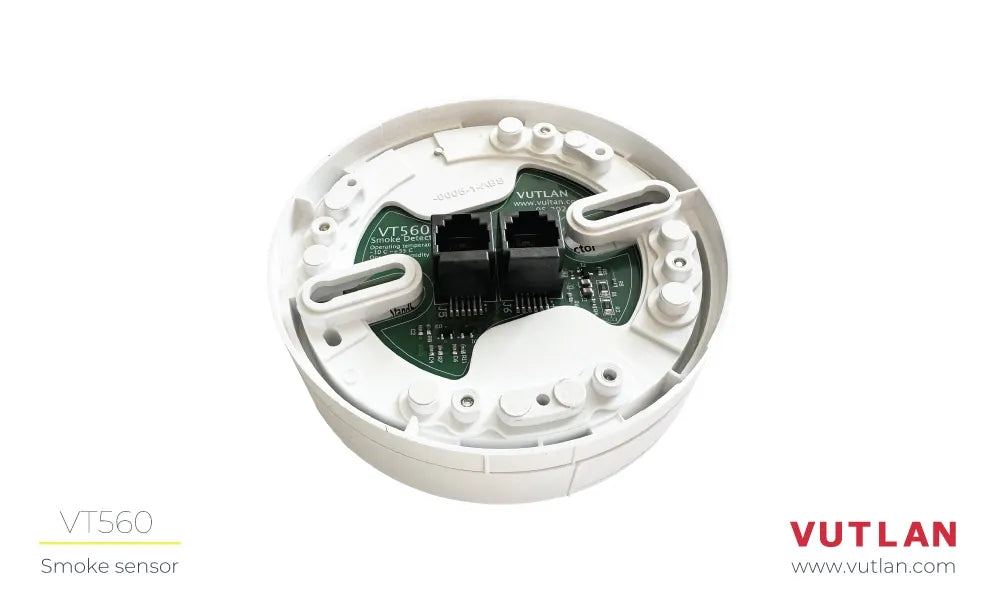

VT560 Smoke Detector

VT560 Smoke Detector

SKU VT560
by Vutlan

Product Datasheet

The VT560 Smoke Detector is designed to monitor the presence of smoke and fire indoors, making it an essential safety device for various environments. It is suitable for installation in rooms, building facilities, server racks, and other areas where smoke or fire may emerge.

The sensor connects seamlessly to any analog port of the Vutlan monitoring unit and is chainable, allowing multiple smoke detectors to be linked together for comprehensive coverage.

For larger setups, the maximum number of sensors and overall system length can be extended using the VT408 / Sensor extension unit, providing flexible options for robust smoke detection.

This smoke detector enhances safety by ensuring rapid response to potential fire hazards, protecting both occupants and valuable equipment.

Use cases

These applications underscore the importance of the VT560 in enhancing safety and providing peace of mind in various environments.

  • Fire Safety Monitoring: It detects the presence of smoke indoors, making it critical for fire prevention and safety in residential, commercial, and industrial settings.
  • Installation in Vulnerable Areas: The sensor can be installed in rooms, building facilities, server racks, and other locations where there is a risk of smoke or fire, ensuring rapid detection and response to potential hazards.

Specifications

  • Type of sensor: Analog sensor
  • Sensing type: Photoelectric
  • Measures: Smoke, fire
  • Daisy chain: Yes, up to 10 sensors in a chain. The system will show all daisy chain sensors in one chain as one element. Any triggered sensor in a chain will trigger the element in the web interface.
  • Cable length: RJ11 / RJ12 6P4C, telephone cable 2m included
  • Power consumption: 100 mW
  • Operating temperature: Optimal: -10 °C to +55° C Extended: -10 °C to +80° C
  • Storage temperature: -10 °C to +55° C
  • Operating humidity: 5 to 95 % (Non-Condensing)
  • Storage humidity: 5% to 95% (Non-Condensing)
  • Average lifespan: >=10 years
  • LED indication: Red LED
  • Inputs / Outputs: x2 ports RJ12
  • Mounting possibilities: On the ?eiling
  • Max. distance from the unit: 150 m from the unit or extension module
  • Maximum installation height 6 m
  • Dimensions Ø100×45 mm
  • Manufactured in: Slovak Republic, E.U.
