Product Datasheet

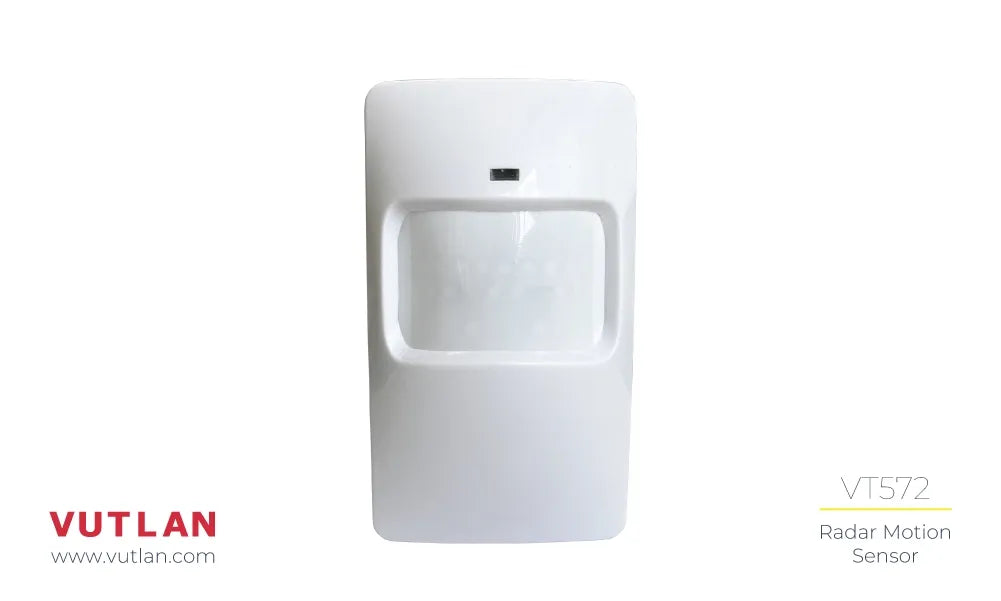

A high-performance sensor/detector using microwave radar as a control signal source to detect objects or human movement. This product is an indoor energy-saving high-sensitivity detector.

The scanned signal can penetrate plastic, glass, ceiling, wooden doors, and thin walls.

Can be connected to any analog port (A1...A8) of the Vutlan monitoring unit. The sensor is plug-and-play and can be configured for event triggering using logic schemes.

The maximum amount of sensors connected to the Vutlan monitoring unit and maximum length can be extended using the "VT408 / Sensor extension unit" or “VT408DIN / Extension unit”.

Use cases

The sensor is highly flexible and can be extended for larger setups using VT408 or VT408DIN extension units, allowing for more comprehensive monitoring across multiple zones.

• Motion Detection: Ideal for detecting human presence or movement in indoor spaces, making it suitable for security systems, lighting automation, and energy-saving applications.
• Object Detection: Can detect objects in environments where the signal needs to penetrate materials like glass, plastic, or thin walls, making it perfect for concealed installation in office buildings, homes, or warehouses.
• Energy-Saving Automation: Commonly used in systems that turn on/off lights, ventilation, or heating/cooling systems based on the presence of people or objects.

Specifications

• Type of sensor: Analog sensor
• Usage: Motion, movement, position, proximity detector/sensor
• Technology: Doppler Principle (transmit and receive signals) using microwave radar with minituarized planar antennas
• Daisy chain: No
• Manufactured in: Slovak Republic, E.U.
• Certification standards: FCC/CE/SRRC/RoHS
• LEDs: Red when movement detected. Green when no movement.
• RF frequency range: 5.725GHz-5.875GHz
• RF transmit power: -4dBm
• Antenna: Built-in flat antennas
• Operating temperature: Sensor PCB: -20 ? to +85 ? ABS enclosure: -20 ? to +80 °C PVC cable: -15 ? to +80 °C
• Storage temperature: -40° ? to +100° C
• Operating humidity: 0 to 85 % (Non-Condensing)
• Storage humidity: 0 to 95 % (Non-Condensing)
• Power consumption: 100 mW
• Installation height: 3 meters is recommended
• Detection angle: 120° C
• Sensing distance: VT572-8: 8 meters VT572-6: 6 meters VT572-4: 4 meters
• Inducting distance: Radius About 5-6 m
• Max. Induction Radius: The radius is 6 meters when hanging height is 3 meters
• Cable length: RJ11 / RJ12 6P4C 2m cable included
• Mounting possibilities: Wall or ceiling mount
• Outputs: RJ-11 / 6P4C
• Max. distance from the unit: 100 m from monitoring or extension unit.

Sensor features

• Logic schemes Logic schemes are used to specify automatic actions to events that occur in the system.
• Dashboard view The system allows to customize the dashboard individually for each user and displays the most important information on it in a visual form. Add widgets with multi graphs, gauge meters or knobs.
• Thresholds Each sensor has Low Alarm, Low Warning, Normal, High Warning, and High alarm threshold states for logic control & sending of notification.
• Graphs and Logging Vutlan supports SD card logging up to 500 Gb. You can log a whole systems loaded with sensors for 3 years.
