Brochure

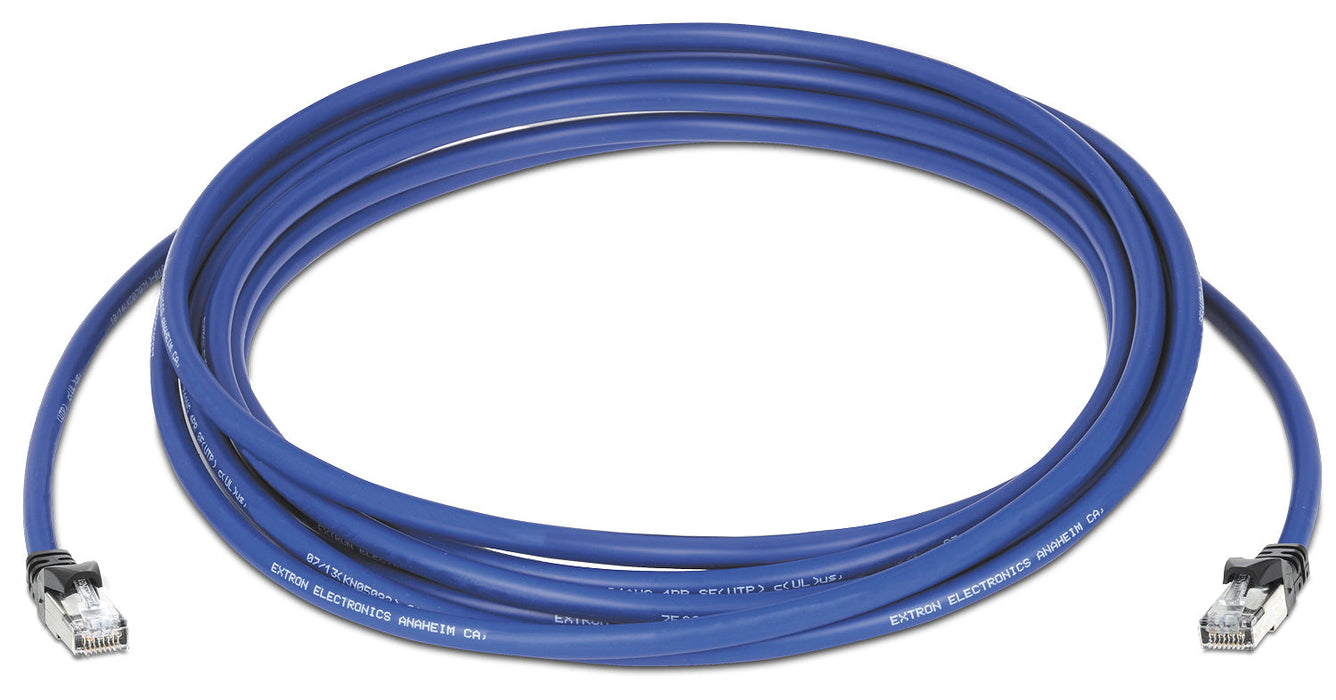

Extron XTP DTP 22P Series cables are precision?terminated plenum-rated, shielded twisted pair cables that optimize high-speed signal transmission and facilitate cabling of Extron XTP Systems and DTP systems. The cables are factory-terminated with Extron XTP DTP 22 RJ-45 Plugs and molded strain reliefs. Designed to meet the increased performance capabilities of DTP3, the cables are constructed with Extron XTP DTP 22P bulk cable, ensuring signal integrity for uncompressed 4K/60 4:4:4 video at distances up to 330 feet (100 meters).

Extron XTP DTP 22P plenum-rated, shielded twisted pair cables provide added protection from outside interference and ensures high quality signal transmission. The cables utilize an S/FTP design with four shielded 22 AWG twisted pair conductors inside an overall braided shield.

To complete an XTP or DTP system cable infrastructure, Extron recommends use of Extron-certified XTP DTP Punch Down Jacks and Couplers, available in packages of 10, or in pre?populated AAP AV Connectivity Modules, MAAP Mini AV Connectivity Modules, and WPD decorator-style wallplates.

Features

• Delivers DTP3 uncompressed 4K/60 video at 4:4:4
• Engineered for superior performance with Extron XTP Systems and DTP systems
• Provides added protection from outside interference and ensures high quality signal transmission
• Designed to ensure signal integrity of uncompressed HDMI 2.0b
• Bandwidth certified to 500 MHz at distances up to 330 feet (100 m)
• S/FTP design with four shielded twisted pairs inside an overall braided shield
• 22 AWG solid copper construction
• Molded strain relief reduces cable damage at connector-sleeve stress point due to flexing and fatigue
• Available in lengths from 35 feet to 100 feet (10.6 m to 30.4 m)
• Plenum, NEC CMP-rated cable
