3GSDI-USB3-CPTR-HDO 3G-SDI to USB 3.0 Video Capture with HDMI Loopout

NTI

3GSDI-USB3-CPTR-HDO

EU CUSTOMERS PLEASE NOTE:

Import duties, taxes and any additional delivery or clearance charges, are not included in the item price or the quoted shipping cost. These charges are the responsibility of the Buyer.

Please check with your local customs office to determine any additional charges prior to purchase.

Continue Shopping or View Cart

Product Datasheet

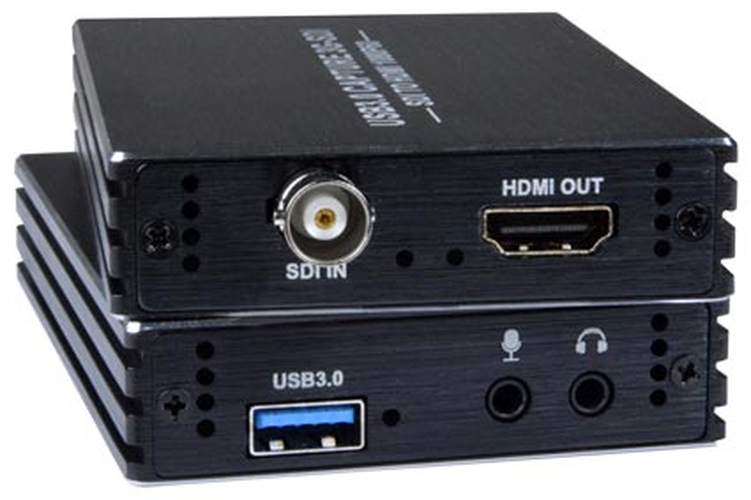

The 3G-SDI to USB 3.0 Video Capture device is used to record or stream an SD/HD/3G-SDI signal via USB 3.0 at up to 350 MB/s. It features an HDMI loop output for local display, as well as separate 3.5mm stereo audio input/output connectors.

  • Converts SD/HD/3G-SDI and stereo audio input signals to high quality USB 3.0 output.
  • Automatic input equalization œ compensates for attenuation on the incoming signal and automatically equalizes cables for the following distances using 75 Ohm RG6 BNC cables: 3G-SDI 1920x1080 @60Hz to 328 feet (100 meters). ; HD-SDI 1280x720 @60Hz to 656 feet (200 meters). ; SD-SDI 525i @60Hz and 625i @50Hz to 984 feet (300 meters).
  • Automatic output reclocking œ reshapes and restores timing of digital video signal at output, eliminating high frequency jitter.
  • Compliant with UVC and UAC standards.
  • UVC protocol allows the host computer/laptop to set the parameters for the USB stream such as resolution, frame rate, and aspect ratio.
  • Supports resolutions to 1920x1080 @60Hz.
  • Independent HDMI loop-through allows the original full-quality source to be routed to monitors or other equipment.
  • Fixed resolution: 1920x1080 @60Hz.
  • Auto-detects 3G-SDI, HD-SDI, or SD-SDI format.
  • Supports SMPTE 259M-C, SMPTE 292M, SMPTE 424M, SMPTE 425M Level A and B video interfaces used for broadcast-grade video.
  • 3.5mm stereo audio input for microphone and output for use with headphones, powered speakers, or connection to an amplifier/receiver.
  • 3.5mm audio output only plays the SDI audio.
  • USB audio stream embeds the microphone audio and plays the SDI audio simultaneously.
  • Multiplatform support: Windows 7/8/10/11, Linux, Mac OS 10/11/12.
  • Easily stream content online œ compatible with most third party software, such as: OBS, Zoom, Teams, Twitch, YouTube, Facebook, Twitter, etc.
  • Plug-and-play functionality œ no software needed.
  • Once plugged in, the device is identified automatically as a webcam.
  • No power supply is necessary œ powered from USB port.
  • Compact/portable design œ perfect for recording in the field or on the go.
  • Ideal for live broadcast, online meetings/classes, gaming, houses of worship, and other A/V applications.

Type: Video Capture Device

Vendor: NTI
