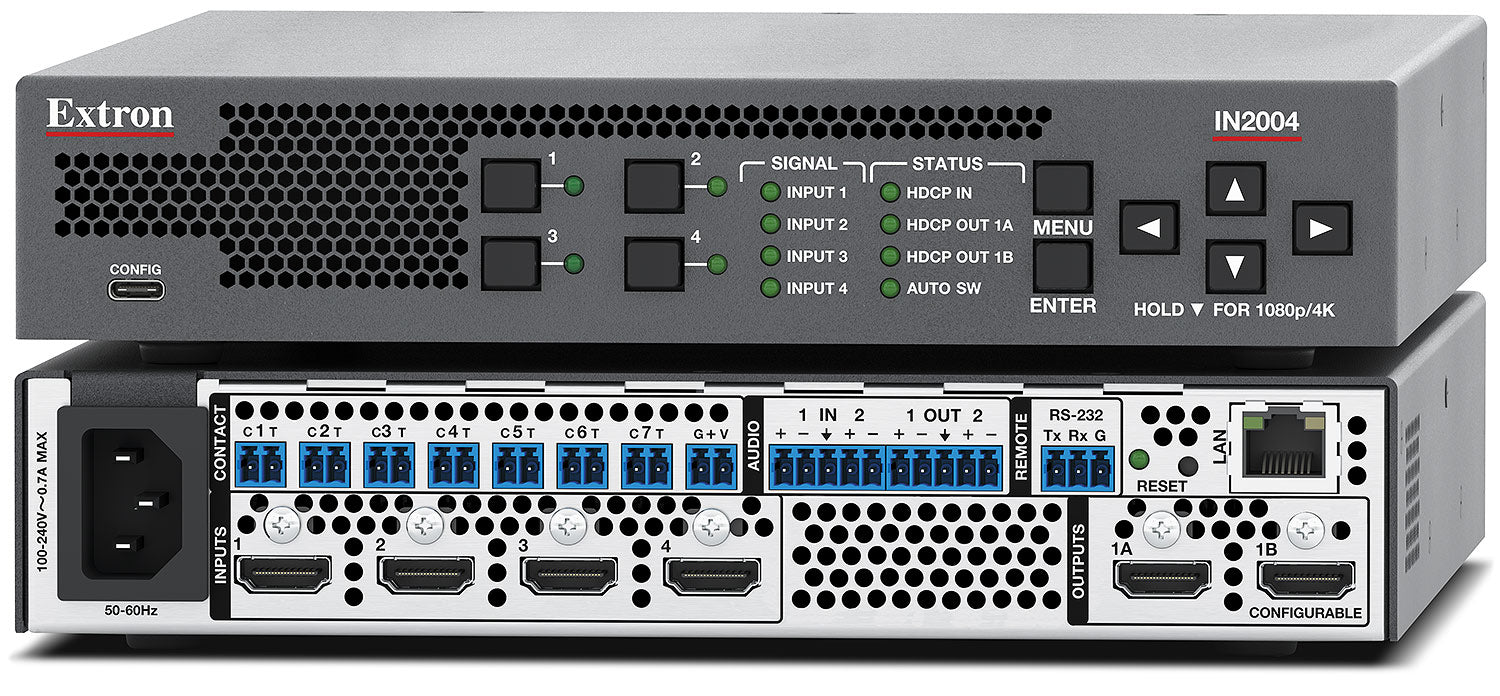

The Extron IN2004 is a compact four-input scaler that supports video resolutions up to 4K/60 at 4:4:4. Integrating HDMI and audio sources into presentation systems, it incorporates Extron-patented Vector 4K scaling technology specifically engineered for critical video processing applications. The IN2004 delivers fast and reliable automatic switching and provides advanced features such as seamless transition effects, logo keying, configurable input loop-out, audio embedding/de-embedding, mixing, and ducking. Loaded with these capabilities and more, the IN2004 is ideal for board rooms, collaboration spaces, and other professional AV venues. For lecture halls and larger installations spanning long distances, the DTP3 IN2004 Series with DTP3 extension of AV and control signals is also available.

Vector 4K Scaling

The IN2004 incorporates Extron Vector 4K scaling technology, developed in?house, and engineered to deliver best-in-class image upscaling and downscaling. The Vector 4K engine embodies a complete set of image processing algorithms that ensure uncompromising scaling performance with 30?bit precision processing. This enables sharp, accurate scaling of standard definition and high definition signals up to 4K, as well as downscaling of 4K source signals for lower resolution displays without losing critical image detail.

For professional-quality transitions between sources, the IN2004 offers a range of switching effects. These include a freeze/fade transition that fades out a final frozen frame of the previous input source as the newly selected source fades in, a cut through black transition, and a fade through black transition. In addition, a custom graphic image, such as a company logo, can be inserted onto the video output. Supported logo file formats include PNG, BMP, JPEG, GIF, TIFF. Selectable FILL and FOLLOW modes are available to set the desired video aspect ratio. FILL mode provides full screen output, while FOLLOW mode preserves the original signal s aspect ratio.

Comprehensive EDID Management

To ensure professional AV systems perform as designed, it is crucial that EDID communication between video sources and sink devices is managed properly. Correct management of EDID allows source equipment to send video and audio signals in formats and parameters that best match display device capabilities. Mishandling of EDID could result in suboptimal image quality, no image, and/or poor sound.

The IN2004 features a suite of Extron-exclusive tools and capabilities for complete control over EDID management. In addition to EDID captured from connected displays or uploaded by the user, EDID Minder provides a library of EDID files that can be applied to any video input. EDID Minder is easily accessible in PCS software. The newest version of EDID Manager is a freely downloadable Windows utility for viewing and editing EDID files. This software enables video format optimization, chroma sampling and color bit depth manipulation, and adjustment to audio capabilities. Edited files may be saved, added to the library, and easily applied to devices within the system.

Audio Flexibility

The IN2004 provides extensive processing and control of audio signals to optimize the user experience. It allows adjustment of the input audio format, audio gain/attenuation, mixing, ducking, audio mutes, analog output format, and output volume. The configuration software supports input and output audio meters to facilitate installation and troubleshooting. The stereo/mono balanced/unbalanced analog audio line input can be mixed with program audio and/or audio file playback.

The IN2004 has two audio output paths: Digital Out 1A/1B and an analog 5-pole captive screw output on the rear panel. These two output groups each have unique DSP functions for mixing, filtering, and dynamics. Each individual output connector supports discrete audio mute control.

Diverse Options for System Control and Operation

The IN2004 supports automatic AV system control and operation with or without an external control processor. Standard, built-in CEC commands can be triggered to control displays or other AV devices connected to the HDMI outputs. It also provides automatic switching between inputs with selectable priority modes for intuitive operation. Remote configuration and control are available via Ethernet, USB and RS-232, plus contact closure with tally output for input switching and muting. The contact and tally ports are compatible with Extron Show Me cables and may also be configured for independent use when the scaler is connected to an external control processor.

Front panel controls and on-screen menus provide quick access to system settings. The IN2004 can also be configured using Extron's PCS software with a user-friendly GUI that is very easy to navigate. This software application allows for expedited setup and commissioning, real-time operation and monitoring, plus the ability to configure multiple Extron products in the same session. The USB-C configuration port on the front panel enables easy system configuration without having to access the rear panel. Built-in Web pages accessible by a standard browser simplify device monitoring and troubleshooting.

Convenient Under-Table and Surface Mounting

The IN2004 is housed in compact 1U, half rack width metal enclosure that can be installed virtually anywhere, including inconspicuous placement underneath a conference table, inside a credenza, or within a lectern. Extron UTS Series and MBU 123 mounting hardware are available separately to facilitate under?table and surface mounting.

Features

• Integrates HDMI and audio sources into presentation systems
• Four HDMI inputs
• Dual HDMI outputs
• Configurable input loop-out HDMI Output 1B is selectable to mirror the main scaler output or as a loop-out for any input.
• Advanced Extron Vector 4K scaling engine The Vector 4K scaling engine is specifically designed for critical-quality 4K imagery, with best-in-class image upscaling and downscaling.
• Supports video resolutions up to 4K/60 with 4:4:4 color sampling
• Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC control
• Selectable seamless switching transitions Seamless freeze/cut, freeze/fade, cut through black, and fade through black transition effects are available at the scaled video outputs.
• Logo image keying and display A logo graphic can be positioned and keyed over the live video output. Logo graphics in BMP, GIF, JPG, PNG, or TIFF format may be uploaded to the unit. Full screen images up to 4K resolution can also be displayed to eliminate loss of video between presentations.
• Auto-switching between inputs Auto-switching allows for intuitive operation in collaboration spaces. Multiple switching priority modes are available, including last-connected input and user-selectable priority.
• Supports ultra-wide aspect ratios, including 21:9 Ultra-widescreen resolutions up to 3840 active pixels may be uploaded as custom output rates.
• Integrated audio mixing, level, ducking, and mute control Provides powerful audio mixing and processing to deliver high-quality audio.
• Stereo audio embedding Analog audio signals can be embedded onto the HDMI output.
• Stereo audio de-embedding Embedded HDMI two-channel PCM audio can be extracted to the analog outputs, or multi-channel bitstream formats can be passed to the HDMI output.
• CEC - Consumer Electronics Control Capability Standard, built?in CEC commands can be triggered to control displays or other AV devices connected to the HDMI outputs. Each video output can deliver CEC commands independently. The ability to control specific functions, such as power on/off, input selection, or volume level, is dependent on implementation by the device manufacturer.
• Scaler Bypass Mode Allows scaling to be bypassed to transmit HDR, high frame rate, and 3D video signals. Ultra-widescreen formats can be supported at output 1B in loop-out mode.
• HDCP 2.3 compliant Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
• User-selectable HDCP authorization Allows inputs to appear HDCP compliant or non?HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non?HDCP mode.
• Key Minder continuously verifies HDCP compliance for quick, reliable switching Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source signal to one or more displays.
• Comprehensive EDID management Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 3.0 software is available for advanced EDID editing and creating custom EDID files.
• EDID Minder automatically manages EDID communication between connected devices EDID Minder ensures that the source powers up properly and reliably outputs content for display. SpeedSwitch Technology provides exceptional switching speed for HDCP?encrypted content
• Displays user-supplied images for screen saver, corporate branding, logo insertion, and HDCP notification Custom, user-loaded images can be displayed as a screen saver after a predefined duration of inactivity at the video input, or whenever the input is disconnected between presentations. User-supplied images can also be displayed for HDCP Visual Confirmation, whenever HDCP-encrypted content is transmitted to a non?HDCP compliant display.
• Supports custom EDID and output resolutions User-defined output resolutions up to 600 MHz pixel clock can be supported by uploading custom EDID files or capturing EDID from a display or other destination device.
• HDCP authentication and signal presence confirmation Provides real-time verification of HDCP status for each digital video input and output. This allows for simple, quick, and easy signal and HDCP verification through RS?232, USB, or Ethernet, providing valuable feedback to a system operator or helpdesk support staff.
• HDCP Visual Confirmation provides a green signal when encrypted content is sent to a non?compliant display When HDCP-encrypted content is transmitted to a non?HDCP compliant display, a full screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.
• Aspect ratio control The aspect ratio of the video output can be controlled by selecting a FILL mode, which provides a full screen output, or a FOLLOW mode that preserves the original aspect ratio of the input signal.
• Motion-adaptive deinterlacing for signals up to 1080i Advanced deinterlacing for all interlaced signals up to 1080i delivers optimized image quality.
• Automatic 3:2 and 2:2 pulldown detection Advanced film mode processing techniques that help maximize image quality for content sources that originated from film.
• Output muting control The video and audio output may be muted independently.
• Image freeze control A live image can be frozen using RS?232, USB, or Ethernet control.
• On?screen menus Intuitive on?screen menus allow for easy system setup using the front panel controls. Key parameters such as input and output video formats are conveniently grouped on the initial Quick Setup screen, while additional screens provide full control over the unit's other functions and settings.
• Internal video test patterns and pink noise generator for calibration and setup Offers several video test patterns and audio pink noise to facilitate proper system setup and calibration of display devices.
• HDMI to DVI Interface Format Correction Automatically enables or disables embedded audio and InfoFrames and sets the correct color space for proper connection to HDMI and DVI displays.
• Audio file playback Up to 16 pre?recorded messages may be stored and played back over the program audio output.
• Supports multiple embedded audio formats Compatible with a broad range of multi?channel audio signals, providing reliable operation with HDMI sources.
• Output Standby Mode Can be set to automatically mute video and sync output to the display device when no active input signal is detected. This allows the projector or display to automatically enter into standby mode to save energy and enhance lamp or panel life.
• Power Save Mode Scaler can be placed in a low?power standby state to conserve energy when not in use.
• Meets Ecofficient Level 1 Includes an energy-saving, externally controllable standby mode that puts the device in a low power state when not in use.
• Front panel security lockout This feature locks out all front panel functions; however, the functions are available through Ethernet, USB, or RS?232 control.
• Ethernet monitoring and control Enables control and proactive monitoring over a LAN or WAN.
• Built-in Web pages Enables the use of a standard browser for device monitoring and troubleshooting over an intuitive Web interface.
• RS-232 control port Enables the use of serial commands for integration into a control system. Extron products use the SIS - Simple Instruction Set command protocol, a set of basic ASCII commands that allow for quick and easy programming.
• Contact closure remote control with tally output Contact closure ports enable remote video input selection control, while tally outputs provide +5 VDC to illuminate LEDs for video input identification. The contact and tally ports may be configured for independent use when the scaler is connected to an external control processor.
• Compatible with Show Me cables Show Me cables provide convenient connectivity and user input selection and control.
• Front panel USB?C configuration port Enables easy system configuration without having to access the rear panel.
• Front panel LED indicators for signal presence, HDCP status, and power Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
• Easy setup and commissioning with Extron's PCS - Product Configuration Software Conveniently configure multiple products using a single software application.
• Compact 1U, half rack width metal enclosure The half rack width enclosure is designed for inconspicuous under-table placement using the UTS Series Under Table Shelf System or MBU 123 Low Profile Mount Kit, available separately.
• Includes LockIt cable lacing brackets Securely fastens HDMI or USB?C cables to a device, eliminating risk of disconnection.
• Internal Extron Everlast power supply Provides worldwide power compatibility, with high?demonstrated reliability and low?power consumption for reduced operating cost.
• Extron Everlast Power Supply is covered by a 7?year parts and labor warranty
• TAA Compliant version available Please inform your local Extron representative if your order requires compliance with TAA regulations.
