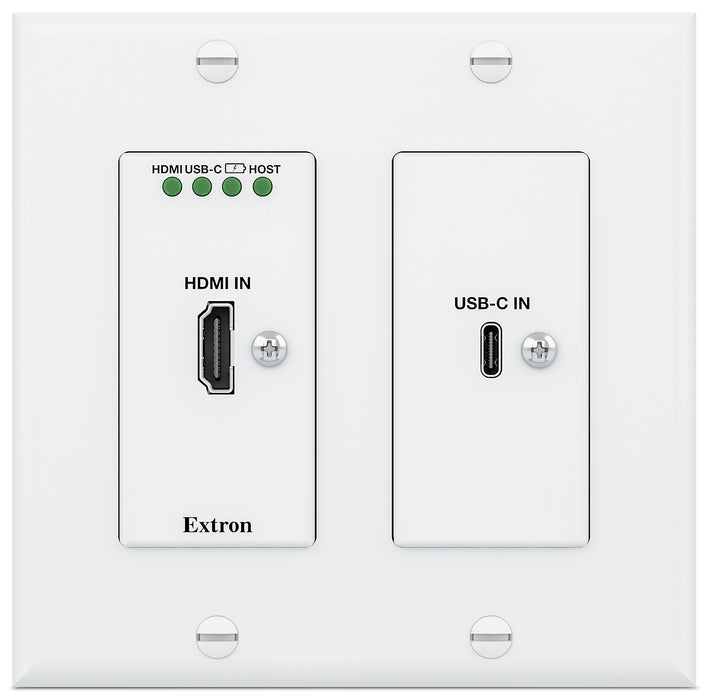

The Extron DTP3 T 322 D is a two-input wallplate transmitter for sending USB-C® video, HDMI, data, embedded audio, power, and control up to 330 feet (100 meters) over a shielded CAT 6A cable. Up to 100 watt USB-C charging is available when deployed with the Extron UPI 100 Power Inserter. It supports video resolutions up to 4K/60 @ 4:4:4 and complies with HDCP 2.3. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. It offers many integrator-friendly features such as EDID Minder®, auto-switching between inputs, remote power capability, and bidirectional RS-232 extension for remote AV device control. Available in black or white, the wall-mountable design provides the convenience of placing input connections precisely where they are needed.

The DTP3 T 322 D supports long distance transmission of HDMI 2.0b signals at data rates up to 18 Gbps, including HDR, Deep Color, 3D, and embedded HD lossless audio formats. DDC communication of EDID and HDCP is continuously maintained between source and display for direct compatibility and optimal signal transmission between devices. The two-gang wallplate form factor facilitates placement of HDMI and USB-C input connections in walls, tables, credenzas, lecterns, and floor boxes.

Full Support for USB-C Video, Data, Power Delivery, and Extension

The DTP3 T 322 D enables the reliable, long distance transmission of USB-C DisplayPort alt-mode video up to 21.6 Gbps. The USB-C input supports the three functions of video/audio, USB data, and device charging over a single cable. This all-in-one connection eliminates the need for laptops to have a separate power or USB data connection and streamlines the user experience with a single cable. The DTP3 T 322 D provides up to 100 watts of charging power with the addition of the UPI 100 power inserter. The transmitter can also access remote USB 2 devices connected to a DTP3 R 331 receiver. This enables cameras, microphones, mice, and keyboards installed in the room to be available to the connected USB host.

Features that Streamline Integration

To enhance and simplify integration of devices and contribute to optimal system performance, the DTP3 T 322 D includes Extron EDID Minder, which automatically manages EDID by maintaining continuous EDID communication with each source. The technology ensures that the sources power up properly and reliably send content for display.

Front panel LED indicators provide immediate visual confirmation of signal presence for each input, HDCP status, and power, as well as connection status for the USB-C host device. A separate LED indicates if the DTP3 T 322 D is configured to automatically switch the active input.

The DTP3 output can be configured for compatibility with HDBaseT-enabled displays to send video, embedded audio, USB data, plus bidirectional RS-232 signals to an HDBaseT-enabled display. It is backward compatible with first-generation DTP-enabled products.The transmitter is also compatible with a broad range of multi-channel audio signals, providing reliable operation with independent audio sources.

Convenient Control and Power

The DTP3 T 322 D provides many other integrator-friendly features designed to help streamline installation. It supports simultaneous transmission of bidirectional RS-232 from a control system. The control signals can be transmitted alongside the video signal, facilitating remote operation of AV devices without the need for additional cabling.

This DTP3 wallplate transmitter can be remotely powered over the shielded CAT 6A cable by a DTP3-enabled product. In addition, it can be configured to provide power to the connected receiver, allowing both devices to share one power supply.

For added convenience, a USB-C configuration port on the front panel offers ready access to information and direct updating of firmware. Configuration of the DTP3 T 322 D is easy with Extron’s PCS - Product Configuration Software. Its user-friendly GUI is very intuitive and easy to navigate. This software application allows for expedited setup and commissioning, along with real-time operation and monitoring. The DTP3 T 322 D mounts in an included two-gang decorator-style wallplate that fits a standard US two-gang size junction box.

To ensure optimal performance with DTP3 systems, Extron recommends XTP DTP 22 cables and accessories. These 22-gauge shielded twisted pair cables and the shielded RJ-45 plugs, jacks, and couplers have been engineered for optimum performance for DTP3 products running at 18 Gbps. Extron XTP DTP 22 cable bandwidth is verified to 500 MHz and utilizes an S/FTP design with four shielded 22 AWG twisted pair conductors inside an overall braided shield. This engineering ensures superior performance and noise immunity.

Features

• Transmits video with embedded audio, USB data, power, and control up to 330’ (100 m) over a shielded CAT 6A cable — The DTP3 T 322 D provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
• Supports computer and video resolutions up to 4K/60 @ 4:4:4, including 5K — Support of 4K/60 with 4:4:4 color sampling requires connection to matching DTP3 products.
• Connects USB-C sources that support DisplayPort Alt Mode
• USB-C host connection — Available to connect hosts at USB 2 data rates up to 480 Mbps.
• Powers and charges a USB-C device with up to 100 watts using the optional UPI 100 power inserter
• USB 2 extension — Connect a DTP3 R 331 receiver to access remotely located USB peripheral devices over the same cable as video and audio.
• Remote power capability with DTP3-enabled products — For streamlined installation, the transmitter can be remotely powered by a DTP3-enabled product over the twisted pair connection. It can also be configured to provide power to a connected DTP3 receiver.
• Auto-switching between inputs — Allows for easy, unmanaged installation in locations such as in a lectern or floor box.
• Supports ultra-wide aspect ratios, including 21:9 and 5K
• Comprehensive EDID management — Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 2.1 software is available for advanced EDID editing and creating custom EDID files.
• Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, and HD lossless audio formats
• HDCP 2.3 compliant — Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
• Compatible with DTP3 and DTP-enabled products — Enables mixing and matching with desktop and wallplate receivers, as well as other DTP-enabled products to meet application requirements. Not compatible with DTP2 products.
• Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
• Compatible with CAT 6A shielded twisted pair cable
• DTP3 output is compatible with HDBaseT™-enabled devices — The DTP3 output can be configured to send video to an HDBaseT-enabled display.
• Support for HDR – High Dynamic Range Video — Enables greater contrast range and wider color gamut by providing the necessary video bandwidth, color depth, and metadata interchange capability for HDR video.
• Bidirectional RS-232 pass-through for AV device control — Bidirectional RS-232 control signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
• User-selectable HDCP authorization — Allows the unit to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.
• Supports multiple embedded audio formats — The DTP3 T 322 D is compatible with a broad range of multi-channel audio signals, providing reliable operation with connected sources.
• EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that sources power up properly and reliably send content for display.
• Supports EDID and HDCP transmission — DDC channels are actively buffered, allowing continuous communication between devices.
• Output muting control — Provides the capability to mute the video or audio output at any time.
• HDCP authentication and signal presence confirmation — Provides real-time verification of HDCP status for each digital video input and output. This allows for simple, quick, and easy signal and HDCP verification through front-panel LEDs or USB, providing valuable feedback to a system operator or member of the helpdesk support staff.
• Front panel USB-C configuration port — Offers convenient access for information and firmware updates.
• RJ?45 signal and link LED indicators for DTP3 port — Validate signal flow and operation, allowing quick identification of connectivity issues.
• LED indicators for signal type, signal presence, and power — LEDs provide visual indication of system status for real-time feedback and monitoring of key performance parameters.
• Easy setup and commissioning with Extron's PCS - Product Configuration Software — Conveniently configure multiple products using a single software application.
• Mounts in an included two-gang decorator-style wallplate — The two-gang decorator-style wallplate is available in black or white to blend with a wide range of environments.
• Includes LockIt® Plus cable lacing brackets — Securely fastens HDMI or USB-C® cables to a device, eliminating risk of disconnection.
• External Extron Everlast® power supply included, replacement part # 70-1259-01 — Provides worldwide power compatibility with high demonstrated reliability and low power consumption.
• Extron Everlast Power Supply is covered by a 7-year parts and labor warranty
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.
