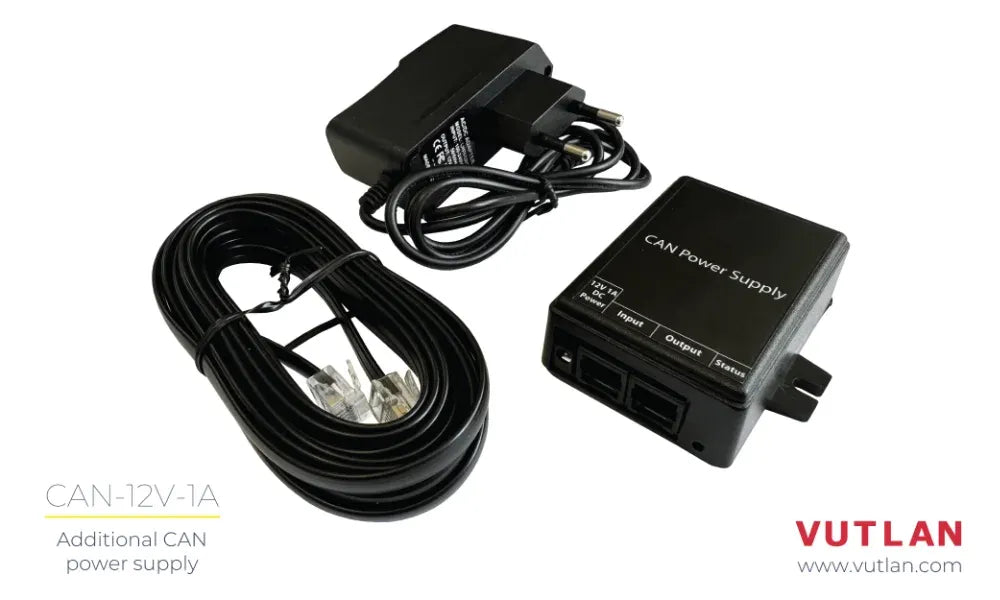

CAN-12V-1A CAN Power Supply
SKU CAN-12V-1A
by Vutlan
The additional power supply is needed only if the number of sensors in a CAN bus chain is more than 12 sensors. CAN-12V-1A supplies power for each additional group of 12 CAN devices (sensors and extensions).
CAN devices and sensors can be chained together. Up to 10-32 CAN devices can be connected in a chain. You can connect CAN sensors or extensions on a CAN bus line.
Specifications
- Type of sensor: CAN bus power source
- Used for: Additional power supply for a CAN bus chain
- Inputs/Outputs x2 ports RJ11/RJ12 6P4C
- Daisy chain: Allows daisy chain
- Power: x12 Maximum quantity of CAN sensors powered:
- LED indicators: Green (Status On/Off)
- Operating temperature: -40° C to +100° C
- Operating humidity: 0 to 95 % (Non-Condensing)
- Power input: 12V DC, min. 1A, max.2A, ?3.4/1,35 mm
- Dimensions: 68 x 67 x 26,2 mm (LxWxH)
- Mounting possibilities: Desktop, Wall mount, Indoor
- Manufactured in: Slovak Republic, E.U.
