Micro Environment Monitoring System, Integrated Temp/Humidity Sensor, POE, DIN Mounted.

Micro Environment Monitoring System, Integrated Temp/Humidity Sensor, POE, DIN Mounted.

SKU E-MICRO-TRHP-D
by NTI
£335.64 - £335.64
£335.64
£335.64 - £335.64
£335.64

Installation and Operation Manual

Micro Environment Monitoring System, Integrated Temp/Humidity Sensor, POE, DIN Mounted. Power supply NOT included

The ENVIROMUX Micro Environment Monitoring System (EMS) monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, web page, network management (SNMP), and/or SMS messages (via email-to-SMS).

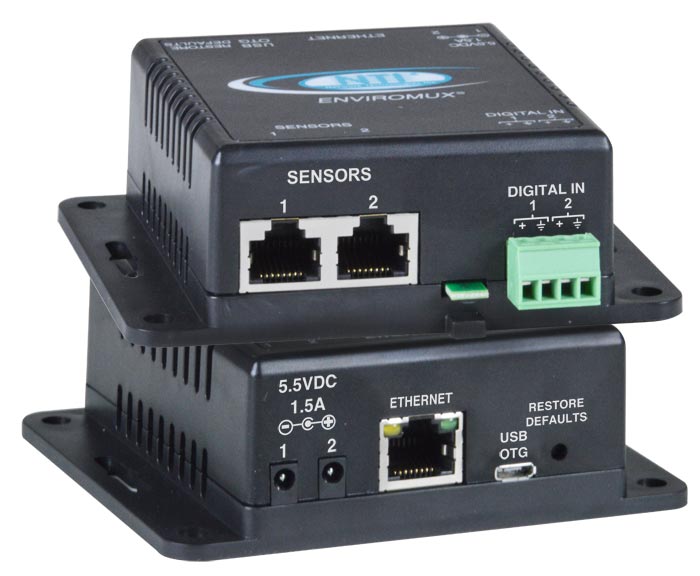

The system functions independently or as an IP-connected remote sensor for the E-2D/5D/16D. The E-MICRO-T features an integrated temperature sensor, two RJ45 sensor ports for external temperature/humidity sensors, and two dry contact inputs. The E-MICRO-TRHP features an integrated temperature/humidity sensor, two RJ45 sensor ports for external temperature/humidity sensors, two dry contact inputs and built-in Power over Ethernet (PoE).

  • E-MICRO-TRHP
  • 1 integrated temperature/humidity combination sensor
  • 2 RJ45 ports for external temperature/humidity sensors
  • 2 digital inputs sensitive to contact closure
  • Built-in Power over Ethernet and dual DC power provides triple redundancy.
  • Sensors are hot pluggable.
  • Monitor (ping) up to 4 IP network devices alerts are sent if devices are not responding.
  • Create multiple alerts for any installed sensor.
  • Sensor conditions can be configured to trigger alerts by themselves, and/or be used in combination with other alerts to trigger one Smart Alert.
  • Configure up to 32 alerts, and one Smart Alert.
  • Alerts are posted in message log, which is accessible through Web user interface.
  • Supports NTI's IP network video cameras for live view of any facility.
  • Integrates with various Open Source SNMP monitoring packages Nagios.
  • The unit can be polled via SNMP.
  • Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX units and all connected sensors.
  • Security: HTTPS, TLS v1.2, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.
  • Integrated mounting brackets for easy surface/wall mounting.
  • Optional DIN mounting available.
  • Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored.
  • Use the E-MICRO-T(RHP) with a wireless router and Wi-Fi Range Extender to create a Wireless Environment Monitoring System.
  • Configure, monitor, and receive alerts without the use of a wired network connection.
