EXT-DP-2CAT7 DisplayPort Extender over CAT-7

Gefen

EXT-DP-2CAT7

Continue Shopping or View Cart

Product Datasheet

Extend DisplayPort over two CAT-7 cables

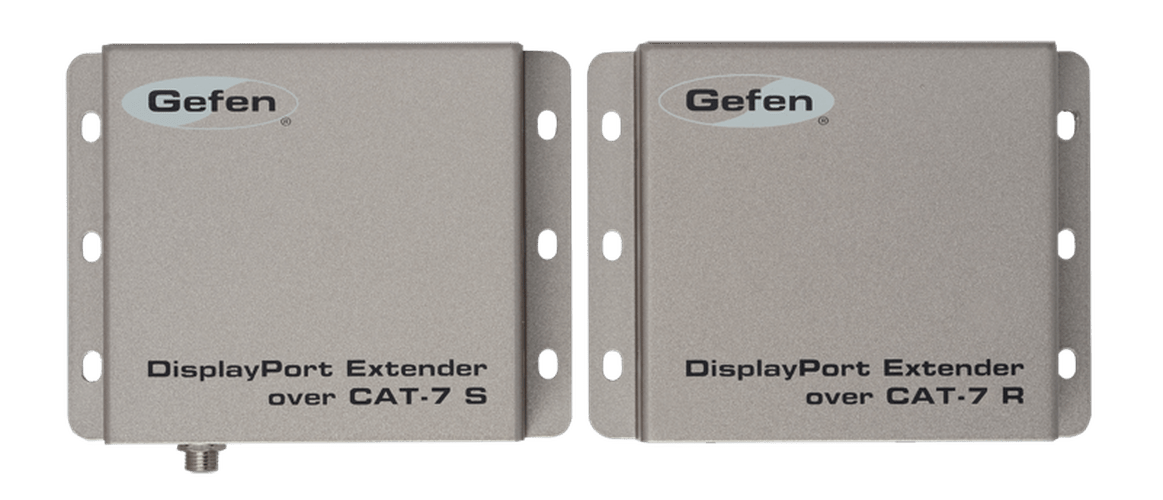

The DisplayPort Extender over CAT-7 allows the installation of a HDTV display up to 100 feet (30 meters) away from a Display- Port source using two CAT-7 cables. Resolutions up to 1920 x 1200 (WUXGA) or 1080p Full HD when using a single CAT-7 cable, and up to 2560 x 1600 (WQXGA) when using two cables, can be supported. HDCP is also supported. The Receiver unit is powered by the first CAT-7 cable that extends the DisplayPort signal from the Sender unit, eliminating the need for an external power supply on the Receiver unit.

How It Works

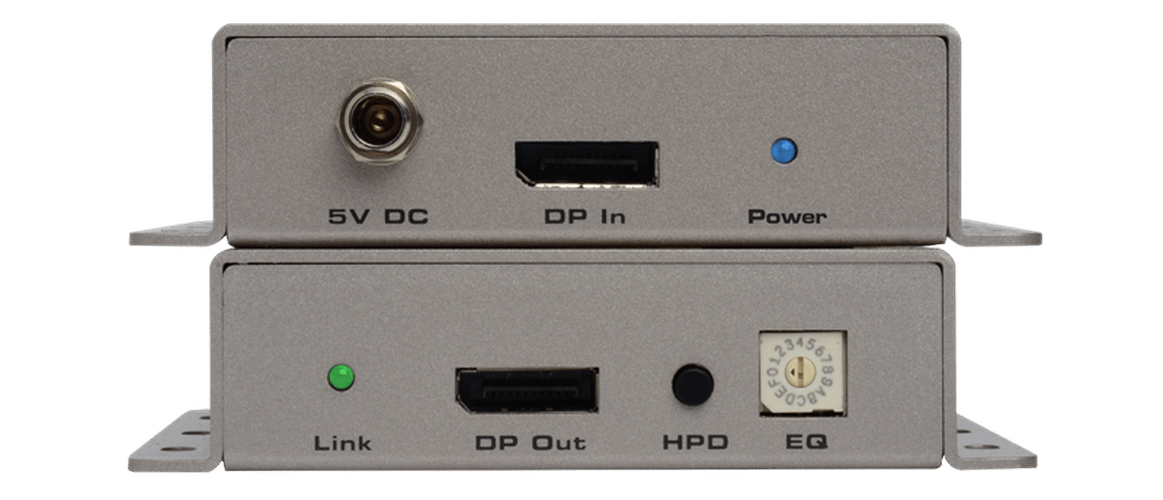

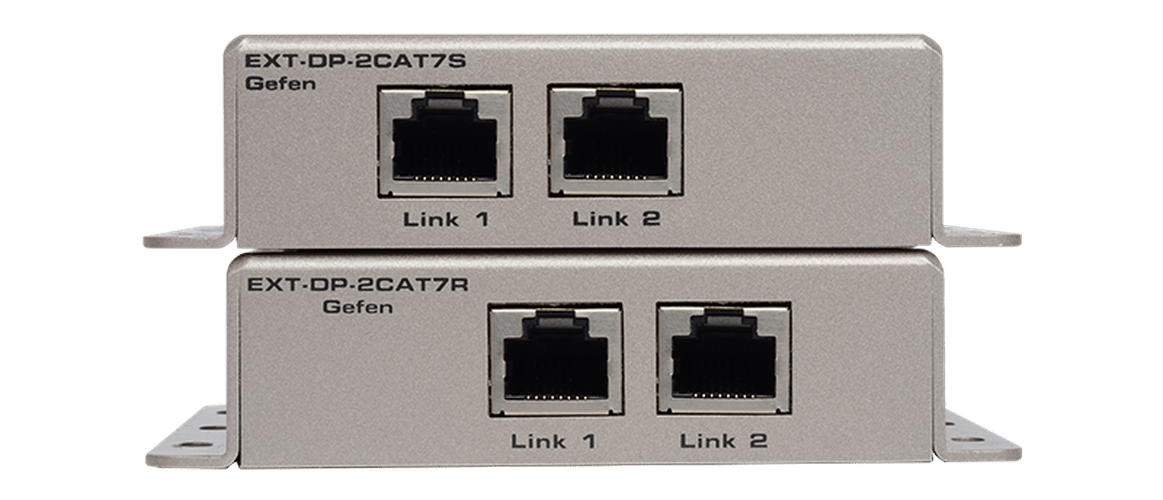

Connect the Sender unit to the DisplayPort source using the included DisplayPort cable. Connect the Receiver unit to the HDTV display using another DisplayPort cable. Connect the Sender unit to the Receiver unit using one or two CAT-7 cables, depending on the maximum required video resolution. Connect the included locking power supply to the Sender unit and an available electric outlet. The Receiver unit is powered by the Link 1 CAT-7 cable and does not require an external power supply. Turn on the power to the source and the display
