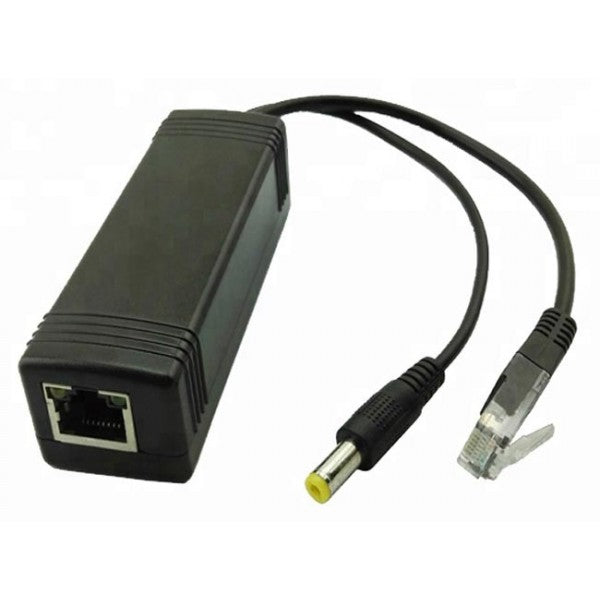

Gigabit Power over Ethernet (POE) 12V Splitter

VPI

ST-POE-12V

Continue Shopping or View Cart

Use the Gigabit Power over Ethernet Splitter to split a POE connection into separate data and power connections, allowing POE devices to connect to and power non-POE devices. Ideal for Wi-Fi access points, IP phones, surveillance cameras, and kiosks where a power connection is not available.

Divide network signals and DC power over CATx & DC cables. Can be used with a POE power source, and can supply power and data to non-POE devices.

The no noise and compact design makes the splitter ideal for use at desktops or on walls.



  • Connectors: male RJ45 and DC barrel jack.
  • Cable length: 8.27in (210mm).
  • Transmission distance: 328ft (100m)
  • Cat5e or above cable.
  • 10/100/1000Mb compatible.
  • Power: Output: DC 12V - Input voltage: 48V  - Input current: 0.04A - POE port output: 12W
  • IEEE802.3af and IEEE802.3 at compliant.



Dimensions

  • WxDxH (in): 1.26x3.54x9.37

MTBF

  • 190,000 hours

Specifications

  • Cable length: 8.27in (210mm).
  • Operating temperature: 32 to 131°F (0 to 55°C)
  • Storage temperature: -4 to 167°F (-20 to 75°C)
  • POE voltage rating: 12W
  • Transmission rate: 10/100/1000Mbps
  • Transmission distance : 328ft (100m)- Cat5e or above
