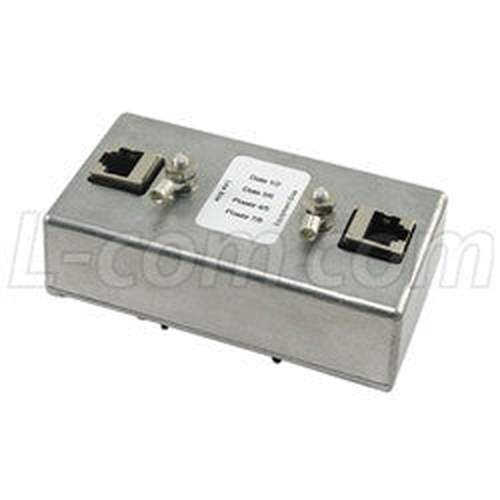

Indoor DIN Mount High Power 10/100 Base-T Shielded CAT5 Lightning Surge Protector

L-Com

HGLND-CAT5-HP

EU CUSTOMERS PLEASE NOTE:

Import duties, taxes and any additional delivery or clearance charges, are not included in the item price or the quoted shipping cost. These charges are the responsibility of the Buyer.

Please check with your local customs office to determine any additional charges prior to purchase.

Continue Shopping or View Cart

The HGLND-CAT5-HP DIN mountable 3-stage lightning protector provides superior lightning and surge protection for indoor and outdoor 10/100 Base-T Ethernet networks. Also compatible with Power-over-Ethernet (PoE) devices, this unit provides protection to both Ethernet data pairs as well as the PoE DC power feed. This protector is compatible with any variation of PoE including 802.3af and proprietary systems from Airspan, Alvarion and Tranzeo. Also it will work with systems without PoE.

In the data path, the first stage is comprised of a differential gas discharge tube. Stage two is a pair of current limiting series resistors and the final stage is a high speed, low capacitance diode clamp array. In the power path, the first stage is comprised of a differential gas discharge tube. Stage two is a pair of filter inductors and the final stage is a pair of bi-directional clamping diodes.

The HGLND-CAT5-HP features shielded RJ45 jacks. This along with the metal housing helps reduce the effects of EMI interference. A ground lug and terminal is provided directly on the lightning protector housing, providing superior grounding. A second ground and terminal is provided for strapping multiple units together.

This unit can be mounted to a DIN 3 rail using the DIN mounting clip located on the rear of the unit.

For additional information and complete specifications, click on the Data Sheet link below.



  • DIN 3 rail mountable
  • 10/100 Base-T CAT5 protection
  • Three stage protection & failsafe architecture
  • Supports PoE mode B for power
  • Industrial grade cast aluminum construction with shielded RJ-45 jacks
