Low Loss N Male to N Male Cable LMR-200-FR, 10 FT

Product Datasheet

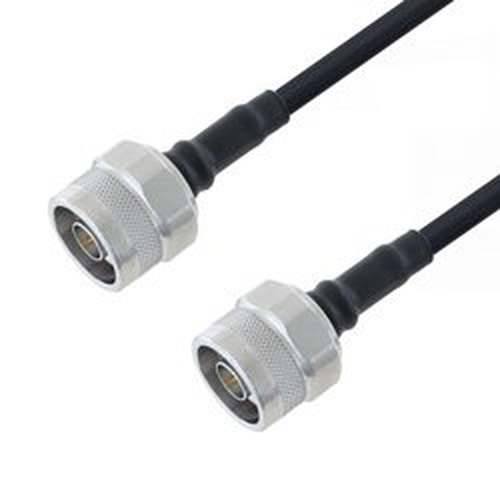

L-com's LCCA30169-FT10 is a low loss N male to N male cable assembly using LMR-200-FR coax, 10 FT with Times Microwave components. The LMR-200-FR coax of this N cable uses the PE dielectric with a VoP of 83%, resulting in very low insertion loss compared to solid dielectrics. These flexible RF cable assemblies are ideal for applications where flexure is required. Our L-com N to N cable assembly has a male to male gender configuration with flexible LMR-200-FR series coax and operates to 5.8 GHz. The double shield of this N cable is layered by tinned copper braid over aluminum tape providing shielding effectiveness greater than 90dB. *LMR  is a trademark of Times Microwave Systems.

Features

• Using Times Microwave Components
• Max Frequency 5.8 GHz
• Shielding Effectivity > 90 dB
• 83% Phase Velocity
• FRPE Jacket
• Low Insertion Loss
• Bend Radius of 2 Inches

Application

• General Purpose
• Laboratory Use
• Antenna Installations
• Land Mobile Radio & Other Communication Systems
• Cellular & Wi-Fi Systems
