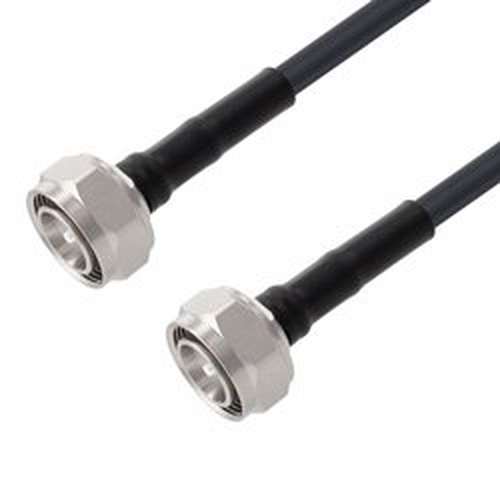

Low Loss 4.3-10 Male to 4.3-10 Male Cable LMR-240, 5 FT

Product Datasheet

L-com's LCCA30171-FT5 is a low loss 4.3-10 male to 4.3-10 male cable assembly using LMR-240 coax, 5 FT with Times Microwave components. The LMR-240 coax of this 4.3-10 cable uses the PE (F) dielectric with a VoP of 84%, resulting in very low insertion loss compared to solid dielectrics. These flexible RF cable assemblies are ideal for applications where flexure is required. Our L-com 4.3-10 to 4.3-10 cable assembly has a male to male gender configuration with flexible LMR-240 series coax and operates to 5.8 GHz. The double shield of this 4.3-10 cable is layered by tinned copper braid over aluminum tape providing shielding effectiveness greater than 90dB. *LMR  is a trademark of Times Microwave Systems.

Features

• Using Times Microwave Components
• Max Frequency 5.8 GHz
• Shielding Effectivity > 90 dB
• 84% Phase Velocity
• PE Jacket
• Low Insertion Loss
• Bend Radius of 2.5 Inches

Application

• General Purpose
• Laboratory Use
• Antenna Installations
• Land Mobile Radio & Other Communication Systems
• Cellular & Wi-Fi Systems
