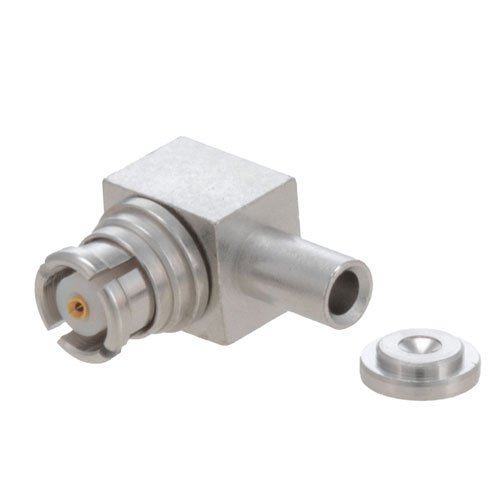

SMP Plug Right Angle Non-magnetic Connector Crimp/Solder Attachment for 0.047 Cable

SMP Plug Right Angle Non-magnetic Connector Crimp/Solder Attachment for 0.047 Cable

SKU LCCN45886
by L-Com
£13.28 - £13.28
£13.28
£13.28 - £13.28
£13.28
Product Datasheet

SMP Non-Magnetic Right Angle Plug Solder type Connector LCCN45886 from L-Com is a SMP Non-magnetic right-angle plug solder type Connector compatible with 0.047 cable. These Non-Magnetic Connector frequency ranges from 0-12.4 GHz with 50 Ohms impedance.

Our Non-magnetic connectors have a susceptibility of around 10??, as opposed to 10?² for standard connectors made of brass/nickel materials. As a result, our non-magnetic connectors are transparent to the magnetic field, which means no field distortion and a higher Signal-to-Noise Ratio (SNR).

Download our LCCN45886 datasheet with specifications and CAD drawing with dimensions for details. The target audience for the right-angle coaxial plug is for quantum computing, the military and aerospace industries as well as the medical industry including MRI and patient monitoring devices.

The LCCN45886 connector from L-Com uses a dedicated manufacturing process, specific gold/copper non-magnetic plating, and raw material selection to guarantee the low magnetic susceptibility level of the connectors.

Features

  • Max. Operating Frequency 12.4 GHz
  • Excellent VSWR of 1.25:1
  • Gold over Copper Plated Beryllium Copper Contact
  • Blind Mate Connector
  • Magnetic Susceptibility 10??

Application

  • General Purpose Test
  • Custom Cable Assemblies
  • Medical
  • Military and Aerospace
  • Quantum Computing
