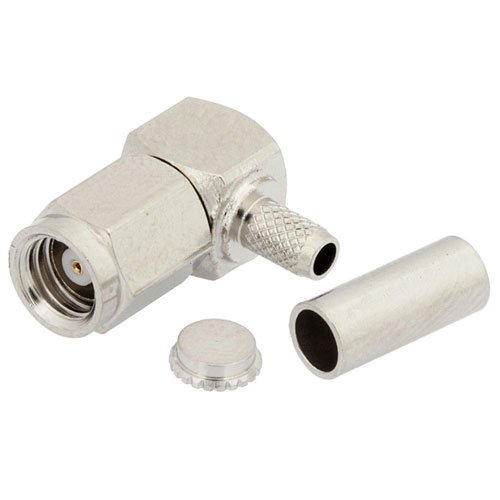

SMC Plug Right Angle Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, .100 inch

L-com's LCCN45891 Right Angle, SMC, Standard, Connector is part of our full line of RF components and operates up to a maximum frequency of 4 GHz and offers good VSWR of 1.35:1. Its right angle body geometry allows for easier connections in tight spaces. Our SMC plug right angle connector LCCN45891 datasheet specifications and drawing with dimensions are shown below in this PDF. L-com's broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize their signal connections however they like.

Features

• Max. Operating Frequency 4 GHz
• Good VSWR of 1.35:1
• Gold Plated Beryllium Copper Contact
• 30 µin minimum contact plating

Application

• General Purpose Test
• Custom Cable Assemblies
