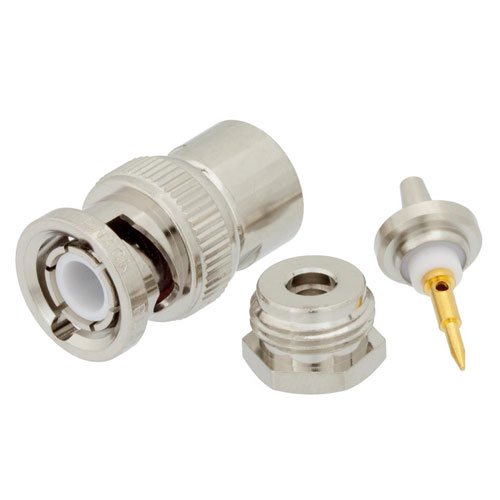

BNC Male Connector Clamp/Solder Attachment for RG174, RG316, RG188, .100 inch, LMR-100

L-com's LCCN45892 , BNC, Standard, Connector is part of our full line of RF components and operates up to a maximum frequency of 4 GHz and offers good VSWR of 1.3:1. Our BNC male connector LCCN45892 datasheet specifications and drawing with dimensions are shown below in this PDF. L-com's broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize their signal connections however they like.

Features

• Max. Operating Frequency 4 GHz
• Good VSWR of 1.3:1
• Gold Plated Brass Contact
• 30 µin minimum contact plating

Application

• General Purpose Test
• Custom Cable Assemblies
