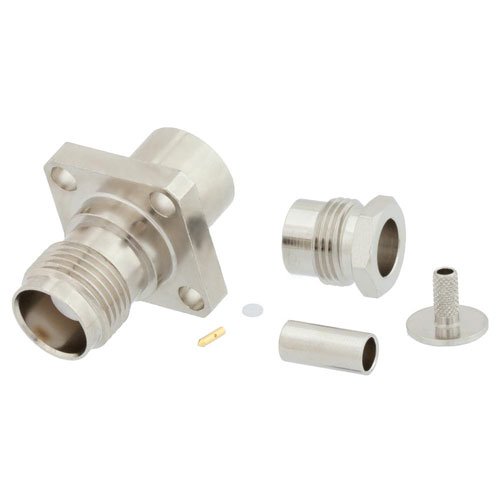

TNC Female Connector Clamp/Solder Attachment 4 Hole Flange Mount for RG316-DS, RG188-DS, IP67 Rated

TNC Female Connector Clamp/Solder Attachment 4 Hole Flange Mount for RG316-DS, RG188-DS, IP67 Rated

SKU LCCN45911
by L-Com
£72.74 - £72.74
£72.74
£72.74 - £72.74
£72.74
Product Datasheet

L-com's LCCN45911 , TNC, Standard, Connector is part of our full line of RF components. Our TNC female connector operates up to a maximum frequency of 2 GHz. This TNC 4 hole flange connector allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications. The connector has an IP67 rating to protect against dust and temporary moisture protection under immersion conditions. Our TNC female 4 hole flange connector LCCN45911 datasheet specifications and drawing with dimensions are shown below in this PDF. L-com's broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize their signal connections however they like.

Features

  • Max. Operating Frequency 2 GHz
  • Gold Plated Beryllium Copper Contact
  • IP67 Rated

Application

  • General Purpose Test
  • Rack and Panel Mount Applications
  • Custom Cable Assemblies
