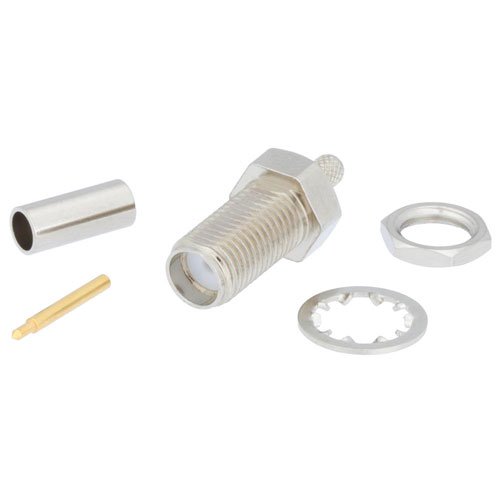

RP SMA Female Bulkhead Connector Crimp/Solder Attachment For RG174, RG316, RG188, .235 inch D Hole

RP SMA Female Bulkhead Connector Crimp/Solder Attachment For RG174, RG316, RG188, .235 inch D Hole

SKU LCCN45933
by L-Com
£43.45 - £43.45
£43.45
£43.45 - £43.45
£43.45
Product Datasheet

L-com's LCCN45933 , SMA, Standard, Connector is part of our full line of RF components. The female reverse polarity configuration uses a female connector body with a male inner contact pin. Our SMA female connector operates up to a maximum frequency of 3 GHz and offers excellent VSWR of 1.21:1. This SMA bulkhead connector allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications. Our reverse polarity SMA female bulkhead connector LCCN45933 datasheet specifications and drawing with dimensions are shown below in this PDF. L-com's broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize their signal connections however they like.

Features

  • Max. Operating Frequency 3 GHz
  • Excellent VSWR of 1.21:1
  • Gold Plated Brass Contact
  • 50 µin minimum contact plating
  • Reverse Polarity

Application

  • General Purpose Test
  • Rack and Panel Mount Applications
  • Custom Cable Assemblies
