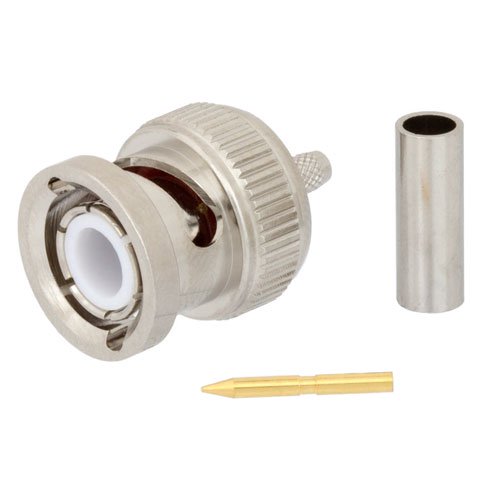

BNC Male Connector Crimp/Solder Attachment for RG316-DS, RG188-DS

BNC Male Connector Crimp/Solder Attachment for RG316-DS, RG188-DS

SKU LCCN45961
by L-Com
£13.64 - £13.64
£13.64
£13.64 - £13.64
£13.64

LCCN45961 BNC male coaxial connector has a series type of BNC male and interface type of RG316-DS, RG188-DS with a 50 Ohm impedance. L-com male connector uses shield/contact crimp/solder as an attachment method. Our male coaxial connector provides a minimum frequency of DC and a maximum frequency of 3 GHz. The BNC connector is available in a 1.11-inch length, 0.571-inch width, and 0.571-inch height.

The L-com male coaxial connector has a Teflon dielectric type. The L-com BNC coaxial connector has a brass body with nickel plating. Our LCCN45961 connector uses brass contact and a gold plating material.

The BNC male connector with 50 Ohm impedance has a weight of 0.027 lbs. The male coaxial connector can operate at temperatures ranging from -65 to 165 degrees C.

Features

  • Max Operating Frequency 3 GHz
  • Gold Plated Brass Contact
  • Excellent VSWR of 1.25:1
  • 50 µin minimum contact plating

Application

  • General Purpose Test
  • Custom Cable Assemblies
