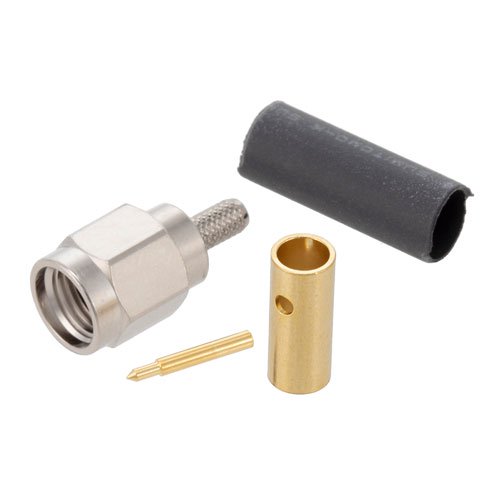

SMA Male Connector Solder/Solder Attachment For RG188-DS, RG316-DS

SMA Male Connector Solder/Solder Attachment For RG188-DS, RG316-DS

SKU LCCN45963
by L-Com
£26.75 - £26.75
£26.75
£26.75 - £26.75
£26.75

LCCN45963 SMA male coaxial connector has a series type of SMA male and interface type of RG188-DS, RG316-DS with a 50 Ohm impedance. L-com male connector uses shield/contact solder/solder as an attachment method. Our male coaxial connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz. The SMA connector is available in a 0.87-inch length, 0.315-inch width, and 0.315-inch height.

The L-com male coaxial connector has a PTFE dielectric type and a VSWR of 1.21:1. The L-com SMA coaxial connector has a brass body with nickel plating. Our LCCN45963 connector uses brass contact and a gold plating material.

The SMA male connector with 50 Ohm impedance has a weight of 0.012 lbs. The male coaxial connector can operate at temperatures ranging from -40 to 85 degrees C.

Features

  • Max Operating Frequency 12.4 GHz
  • Gold Plated Brass Contact
  • Excellent VSWR of 1.21:1
  • 30 µin minimum contact plating

Application

  • General Purpose Test
  • Custom Cable Assemblies
