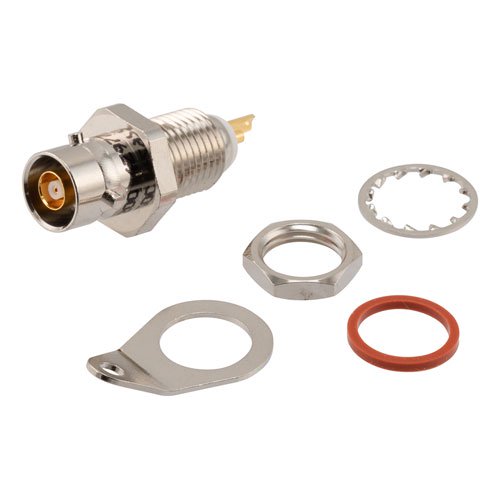

78 Ohm TRS 3-Lug NI Bulkhead Front Mount Jack 1553 Connector Solder/Solder for TRS 3-Slot Plug

78 Ohm TRS 3-Lug NI Bulkhead Front Mount Jack 1553 Connector Solder/Solder for TRS 3-Slot Plug

SKU LCCNMSB00009
by L-Com
£19.03 - £19.03
£19.03
£19.03 - £19.03
£19.03
Product Datasheet

L-com’s LCCNMSB00009 is a coax connector with a 78 Ohms impedance and uses solder/solder as an attachment method. This coax connector has an interface type TRS 3-lug jack that is compatible with TRS 3-slot Plug cables. Our TRS 3-lug connector has a bayonet coupling design that can withstand severe shocks and vibrations. This TRS 3-lug jack coax connector operates at a maximum frequency of 500 MHz.

This bayonet 1553 RF connector can operate at temperatures ranging from -55 to 200 degrees C. Our LCCNMSB00009 connector from L-com uses a beryllium copper inner contact and a phosphor bronze outer contact. This bayonet coax connector has a brass body with nickel plating. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings.

Our high-quality LCCNMSB00009 connector from L-com features an ASTM-B-733 body plating specification. Our TRS 3-lug RF connector with coax termination has a 0.100 dB maximum insertion loss. This TRS 3-lug connector has a gold 30 micro inches center contact plating.

Features

  • Twinax Connectivity
  • Bayonet Coupling

Application

  • Robust Design
  • Ease of Use
  • Use in High Shock and Vibration Environment
