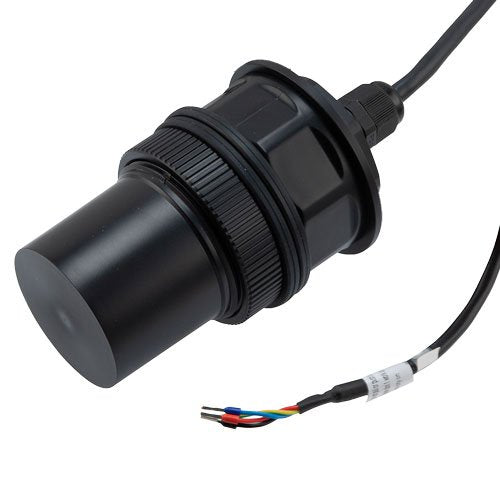

Intelligent ultrasonic level transmitter, 10 m range, RS485, G2, direct lead, 3 m cable

Intelligent ultrasonic level transmitter, 10 m range, RS485, G2, direct lead, 3 m cable

SKU LLUSCS03-5402
by L-Com
£700.62 - £700.62
£700.62
£700.62 - £700.62
£700.62
Product Datasheet

L-Com’s LLUSCS03-5402 is a low power ultrasonic liquid level transmitter with an 10000 mm sensing distance. This liquid level transmitter has a RS-485 output with a direct lead electric connection. Our level sensing transmitter has a 3 meter 4 wire cable connection with a G2 process connection. This level transmitter has a IP67 ingress protection rating.

The LLUSCS03-5402 low power ultrasonic liquid level transmitter has a polycarbonate housing. Our transmitter has a typical accuracy of 0.5 % full scale and a long-term stability of 0.2 % full scale/year. This water level transmitter is suitable for the petroleum industry, water and sewage treatment, chemical production, food and beverage and hydrostatic level monitoring

applications. Our submersible transmitter operates at a temperature ranging from -25 to +80 deg C. This water level transmitter is powered by DC voltage ranging from 11 to 36 VDC.

Features

  • Echo analysis technology
  • High Reliability
  • Rugged industrial grade housing
  • G2 process connection
  • RS-485 output

Application

  • Petroleum Industry
  • Water and sewage treatment
  • Chemical Production
  • Food and beverage
  • Non-contact level monitoring
