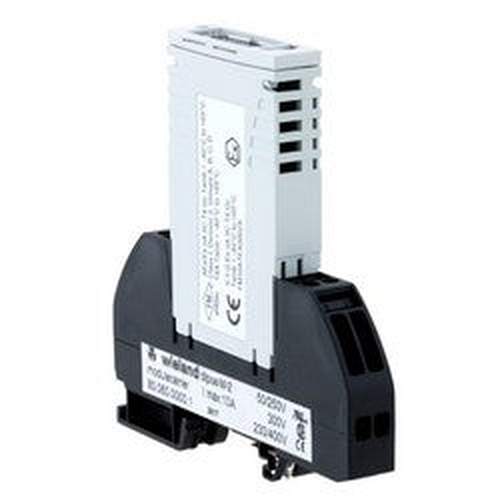

DC Protector Din Rail Mount w/Terminal Block 12VDC




Import duties, taxes and any additional delivery or clearance charges, are not included in the item price or the quoted shipping cost. These charges are the responsibility of the Buyer.

Please check with your local customs office to determine any additional charges prior to purchase.

Continue Shopping or View Cart

Product Datasheet

The LPXT Series Din-Rail DC surge suppressors are modular, high-speed, high-current, solid-state devices designed to protect electronic equipment and systems from transient overvoltage. The suppressor limits the magnitude of transient overvoltage that may occur on low voltage DC power lines, 4-20mA current loops or low frequency data lines. Data lines that benefit from LPXT suppression include: Ethernet,RS-485/232, Profibus, Foundation Fieldbus, DH+ or DeviceNet.

The LPXT Series surge suppressors utilize only silicon avalanche suppression diodes (SASD). The suppressor provides continuous, bipolar protection and automatically resets after a surge event with no degradation to its protection capabilities. The suppressor includes a removable module with a base that mounts on a standard 35mm DIN (EN5022) rail. The suppressor size and form factor allows for convenient replacement of existing terminal blocks. The suppressor connects in a series (pass-through) configuration, the screw terminals accept two wire pairs (28 - 12AWG), and the device is rated for up to 10A of continuous current.

Note: The LPXT surge suppressor REQUIRES that the DIN-Rail have a solid low impedance path to Earth ground for proper suppressor operation


  • Line Voltage (12 VDC) (24 VDC) (48 VDC) (70 VDC)
  • Ultra Compact modular design
  • Mounts to any standard 35mm DIN Rail
  • Silicon Avalanche Suppression Diodes (SASD)
  • Bidirectional protector


  • DC Control line applications
  • Industrial control lines
  • Industrial process control
