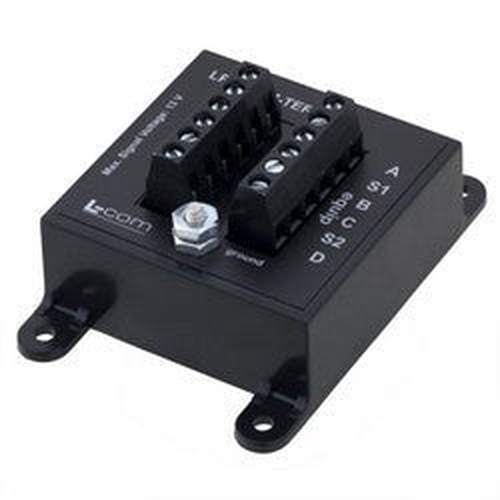

Serial Protector Wallmount w/Terminal Block 12VDC

LPXT-WM-TERM series of surge suppressors are a high-speed, high-current solid state device designed to protect RS 422, 4-20 ma Double Wire Pair (4-Wire) configurations and other balanced pair applications from transient over voltages. The LPXT-WM-TERM series uses only silicon suppression components. It connects to the equipment and line via two (2). Six (6) position terminal blocks. Note: "EQUIP GND" connection should be kept as short as possible and utilize the largest gauge wire possible.

Features:

• Two 6 position terminal blocks
• Non degradable, low clamping, leadless, silicon avalanche diode
• Line and load bidirectional protection
• Protects up to two balanced pairs and shields

Applications

• RS422
• RS485
• 4-20mA loops
• Double wire pair equipment
