Data Line Protector 1GB RJ45S F/F

L-Com

LPXTRJ45S-GB

EU CUSTOMERS PLEASE NOTE:

Import duties, taxes and any additional delivery or clearance charges, are not included in the item price or the quoted shipping cost. These charges are the responsibility of the Buyer.

Please check with your local customs office to determine any additional charges prior to purchase.

Continue Shopping or View Cart

Product Datasheet

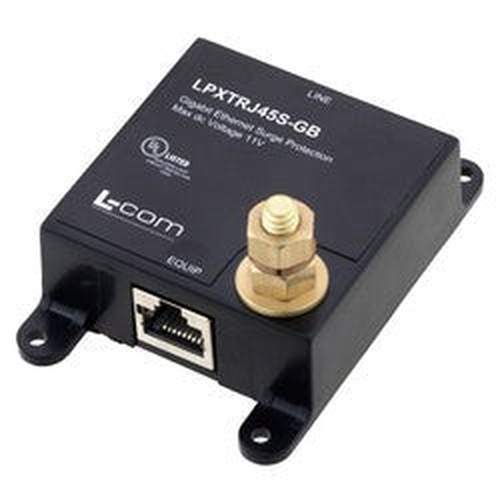

The LPXTRJ45S-GB is a 1Gb (1000 Base-T) surge suppressor is a high-speed, high-current, solid-state device designed to protect equipment from transient over-voltages on high-speed data lines with RJ-45 connectors using pins 1-8. It performs this function by limiting the magnitude of transient over-voltages that are present on each pair relative to each other and relative to ground. Continuous bi-polar, bi-directional, non-interrupting protection is provided. It also includes a ground stud that must be connected to the system ground. Note: Cut ground lead as short as possible for optimum suppression.

Features:

  • In-Line Protection for Gigabit 1000 Mb/s Ethernet data lines
  • Protected Pairs (1/2), (4/5), (3/6) and (7,8)
  • Integral mounting feet

Applications

  • Wireless LAN Access Points and Bridges
  • Wired Switches
  • IP Surveillance Cameras
  • VoIP (Voice over Internet Protocol) Telephones
