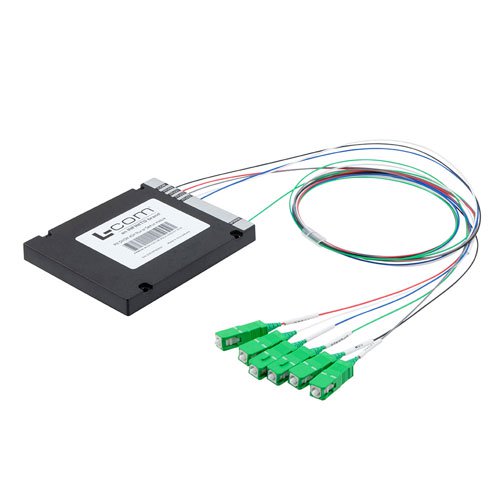

Passive PM DWDM, Field Unit Cassette, Mux & DeMux Combo, 4 Channel, 100 GHz spacing, start Ch 28-31, .9mm, 1M cable with SC/APC connectors.

Passive PM DWDM, Field Unit Cassette, Mux & DeMux Combo, 4 Channel, 100 GHz spacing, start Ch 28-31, .9mm, 1M cable with SC/APC connectors.

SKU PPMDW-AC04-128-195
by L-Com
£2,586.89 - £2,586.89
£2,586.89
£2,586.89 - £2,586.89
£2,586.89
Product Datasheet

The L-com PPMDW-AC04-128-195 is a polarized maintaining DWDM Passive Filter with 4 Channels. The L-com PPMDW-AC04-128-195 is a Mux & DeMux Combo (100mmX80mmX10mm) Cassette filter offering 100 GHz Channel Spacing that includes an upgrade port with no additional parts necessary. The L-com PPMDW-AC04-128-195 has 4 channels, starting with ITU Ch 28-31 and has a .9mm diameter 1M cable with SC/APC connectors.

Features

  • Polarized Maintaining
  • Low Insertion Loss
  • Compact Size
  • Cassette Module
  • Mux & DeMux Combo
  • 100 GHz, ITU Ch 28-31
  • .9mm loose tube cable
  • 1M, SC/APC
  • Upgrade Port

Application

  • Communications Networks
  • Coherent Detection
  • Fiber Sensors
  • Research and Development
