PT-2H HDMI Equalizer

INPUT 1 HDMI/DVITMDS on a type A 19pin HDMI connector

OUTPUT 1 HDMI, HDCP1.0/1.1 on a type A 19pin HDMI connector

MAX. DATA RATE 4.95Gbps (1.65Gbps per graphic channel)

HDMI COMPLIANCE HDMI RESOLUTION All resolutions from VGA up to UXGA

DTV/HDTV VIDEO FORMAT 480i, 576i, 480p, 576p, 720p, 1080i, and 1080p

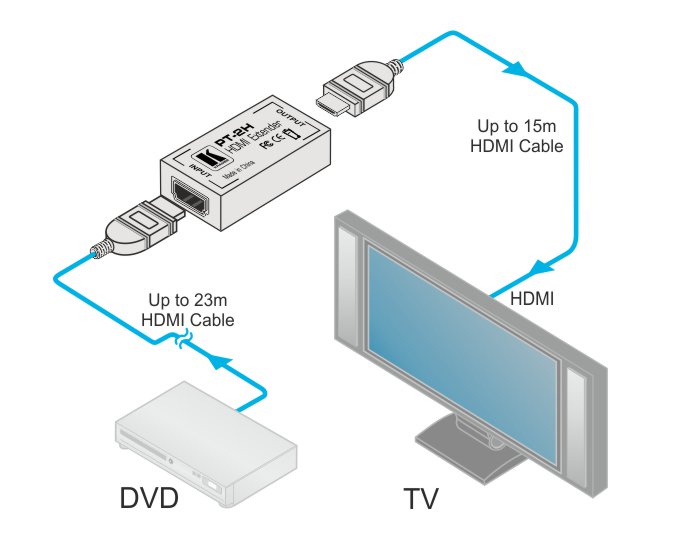

MAX. RANGE 1920 x 1200, 1080p ‚ 38m (120ft): 23m from HDMI source to PT2H, 15m* from PT2H to HDMI acceptor. *For older models, 7m from PT2H to HDMI acceptor (check with your local Kramer office)

PRODUCT DIMENSION 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H

SHIPPING WEIGHT 0.1kg (0.1lbs) approx.
