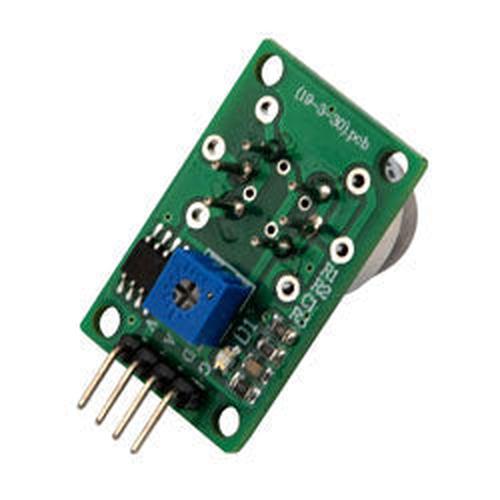

Ammonia Gas Sensor Module, 10-1000 ppm, Analog and TTL level Output, MQ135 Sensing Element

Ammonia Gas Sensor Module, 10-1000 ppm, Analog and TTL level Output, MQ135 Sensing Element

SKU SRAQ-G016
by L-Com
£20.02 - £20.02
£20.02
£20.02 - £20.02
£20.02
Product Datasheet

The L-com SRAQ-G016 gas sensor module is used to detect the presence and concentration of ammonia, as well as other harmful vapors such as sulfide and benzene. This device requires a 5 VDC ± 0.2 V power supply, a < 150 mA working current, and has a detection range of 10-1000 ppm. Our 5 VDC ± 0.2 V sensor module is well suited for mining industry, agriculture industry, farming and livestock industry, public restrooms, and other IoT systems.

The ammonia, as well as other harmful vapors such as sulfide and benzene sensor module has 4 pin male header which allows for easy integration into gas detection devices. The sensor module features a MQ135 sensing element with good sensitivity and selectivity to ammonia, as well as other harmful vapors such as sulfide and benzene, which makes it less affected by temperature and humidity. This SRAQ-G016 sensor module has a analog and TTL level output modes and it operates at temperatures ranging from -10 to 50 Degrees C.

Features

  • Features Mq135 sensing element
  • Highly sensitive and accurate
  • Low power consumption
  • Wide detection range 10-100ppm
  • Analog and TTL level outputs
  • 4pin male header

Application

  • Mining industry
  • Agriculture industry
  • Farming and Livestock industry
  • Public restrooms
  • Other IoT systems
