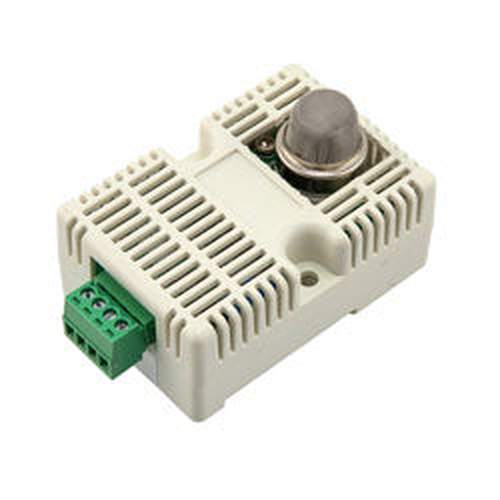

Ammonia Gas Sensor Module, 5-500 ppm, Analog and TTL level Output

Ammonia Gas Sensor Module, 5-500 ppm, Analog and TTL level Output

SKU SRAQ-G216
by L-Com
£138.17 - £138.17
£138.17
£138.17 - £138.17
£138.17
Product Datasheet

The L-com SRAQ-G216 gas sensor module is used to detect the presence and concentration of ammonia, as well as other ammonia-based gases. This device requires a 5 VDC ± 0.2 V power supply, a < 150 mA working current, and has a detection range of 5-500 ppm. Our 5 VDC ± 0.2 V sensor module is well suited for mining industry, agriculture industry, farming and livestock industry, public restrooms, and other areas where NH3 is a concern.

The ammonia, as well as other ammonia-based gases sensor module has 4 pin male header which allows for easy integration into gas detection devices. The sensor module has good sensitivity and selectivity to ammonia, as well as other ammonia-based gases, which makes it less affected by temperature and humidity. This SRAQ-G216 sensor module has a analog and TTL level output modes and it operates at temperatures ranging from -10 to 50 Degrees C.

Features

  • Features Mq137 sensing element
  • High sensitivity
  • 24VDC supply
  • Detection range 5-500ppm
  • Analog outputs
  • Wall or DIN rail mountable

Application

  • Mining industry
  • Agriculture industry
  • Farming and Livestock industry
  • Public restrooms
  • Other areas where NH3 is a concern
