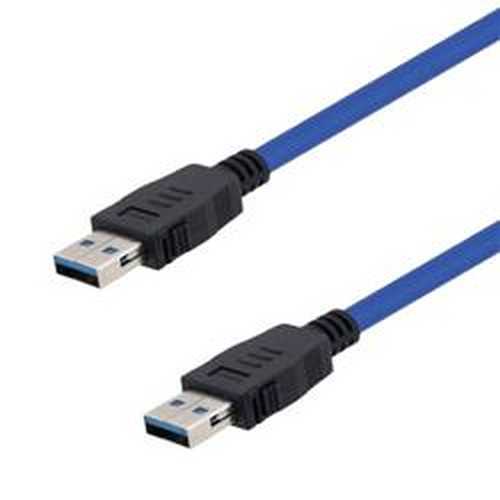

USB 3.0 Latching Type A male to male 0.75M Cable Assembly

Product Datasheet

These unique cable assemblies feature two latching Type A USB plugs which provide lock down mating retention with any USB Type A jack. Fully shielded and USB 3.0 compliant, this cable contains two 24 AWG power conductors and two 30 AWG shielded pair for the data lines and one unshielded twisted pair 30AWG. Color is blue.

Features

• Unique latching feature provides a secure connection to any USB type A jack
• 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
• 2X, Twisted pair, 30AWG with ALUM/POLY Foil Shield and Drain wire. One Unshielded Twisted Pair, 30AWG. 2 COND., 24AWG.
• Available in lengths of 0.3, 0.5, 0.75, 1 and 1.5 meters
• Color Blue

Application

• PC Peripheral Interconnects
• Confined space USB applications
• Data Acquisition
• Portable Data Storage
• Test and Measurement
