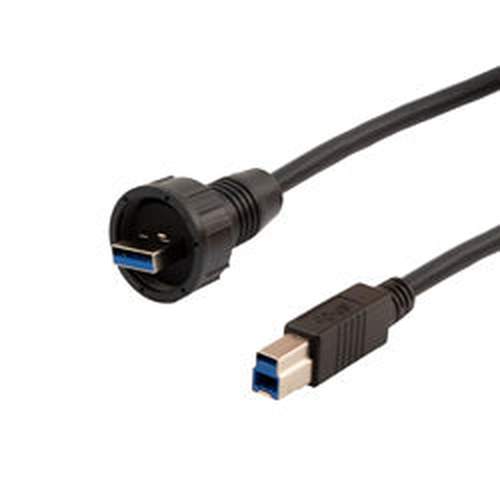

Waterproof USB 3.0 Cable, IP67 A Male to Standard B Male, 0.5M

Product Datasheet

As USB interconnect systems gain in popularity, so too do the demands on the cabling systems. L-com's waterproof cables can prevent costly repairs that are sometimes necessary when contaminants such as water and dust destroy standard unprotected USB connectors. These IP67 rated cables feature waterproof connectors to standard connectors. IP67 Male versions are shrouded and IP67 female versions are bulkhead and panel mount capable. Mates and dust caps are also available as are fully shielded, die-cast metal connectors for a full 360° that can ground to a panel or enclosure. Most options are available in USB 2.0 and USB 3.0 standards.

Features

• Waterproof USB A male to standard B male; USB revision 3.0 compliant
• 30 micro inch gold contact plating provides reliable connections even over repeated mating cycles
• Rugged molded back-shells ensures durability
• Threaded couplings and O-ring seals provide IP67 rating when mated properly to ensure protection against water, dust and particulate; UL 20276 UV resistant jacket is appropriate for outdoor use
• Standard lengths are 0.5, 1.0 and 1.5 meters

Application

• Industrial or factory automation
• Process engineering
• Data acquisition or PLC communications
• Outdoor, industrial or harsh environment use
• Test and measurement
