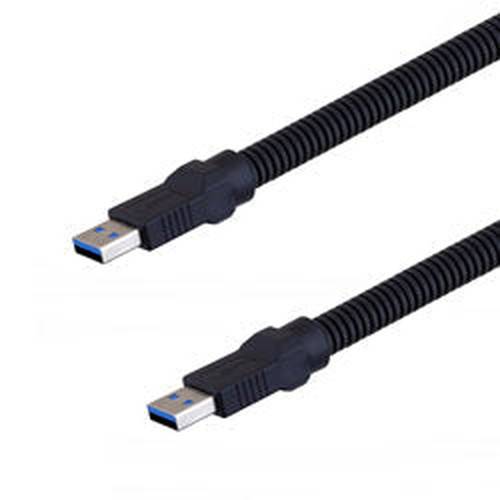

Plastic Armored USB 3.0 Cable Assembly, Type A Male Plug to Type A Male Plug, 28/26/22AWG, Plastic Armor, 3.0M

Product Datasheet

These unique L-com U3A00071 series of USB cables feature a stainless steel or plastic crush resistant armor over L-com's premium USB 3.0 cable to provide protection in applications where standard cables would be damaged due to excessive force. Crush resistance is 1500 PSI (Pounds per Square Inch) for the stainless steel versions and 800 PSI for the plastic versions. The 22AWG USB power wires allow for maximum power transfer and successful USB 3.0 transmission at distances of 2 to 3 meters. All assemblies are shielded and built with UL Style 2725 PVC cable under the armor. Molded ends and a coupling nut provides extra durability. Steel versions are silver and plastic versions are black.

Features

• USB 3.0 cable assembly with plastic protective outer jacket
• Plastic material provides 800 PSI crush resistance over UL 2725 PVC inner jacket
• Premium cable featuring 22 AWG power leads allows for maximum power transfer
• Foil plus braid shield provides max protection against EMI/RFI
• 22AWG version available in lengths of 2.0 and 3.0m

Application

• Industrial PCs
• Test and Measurement
• Data Acquisition
• Portable Data Storage
• Gaming hardware and interfaces
