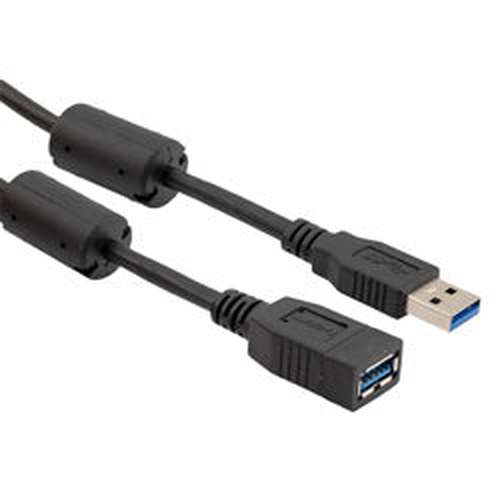

USB 3.0 Cable Assembly, Type A Male Plug to Type A Female Jack w/ Ferrites, 30/24AWG, Low Smoke Zero Halogen LSZH, Black, 0.5M

Product Datasheet

L-com offers a wide selection of USB 3.0 cable assemblies. The U3A00086 family's addition of ferrites to the ends of a cable helps to suppress high frequency noise for a cleaner and more efficient signal. L-com's USB 3.0 cable selection with ferrites includes cable assemblies with Type A, Type C, and Type Micro B connectors. Ferrite cables are often available in both PVC and LSZH (Low Smoke Zero Halogen) options.

Features

• USB 3.0 assembly with encapsulated ferrite beads
• Fully shielded to provide maximum protection against EMI/RFI
• UL Style 21551 Low Smoke Zero Halogen (LSZH or LS0H) jacket in black
• 24AWG power conductors for maximum power transfer; see L-com's U3A00090-2M for 22AWG, 2m option
• Transfer rates up to 4.8 Gbps

Application

• Data Storage and Acquisition
• Test and Measurement
• Video Transfer or Cameras
• Portable Data Storage
• Gaming hardware and interfaces
