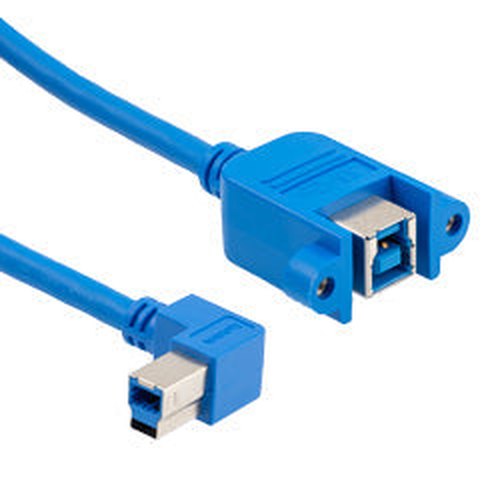

USB 3.0 Cable Assembly, Type B Panel Mount Female Jack to Type B 90 Degree Right Angle Male Plug, 28/26/22AWG, PVC, Blue, 2.0M

Product Datasheet

Newly designed U3A00103 family of USB 3.0 versions of L-com's popular UPM style panel mount USB adapter cables are now available with right angle connectors! This series features a bulkhead Type B 3.0 jack to a molded 90° Right Angle Type B 3.0 plug attached via USB 3.0 compliant cable. USB 3.0 systems are up to 10 times faster than USB 2.0 - 4.8 Gbps versus 480 Mbps. The increased bandwidth substantially reduces the time required for transferring large amounts of data or video. These assemblies are fully shielded and use L-com's popular UPM style housing that can be used with virtually any panel thickness. The recommended 4-40 mounting screws must be purchased separately (P/N ECF440).

Features

• Allows USB 3.0 cables to be passed through panels or enclosures
• Screw mount for secure installations
• Angled connector for tight and space constrained applications
• 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
• UL Style 2725 PVC jacket with 22AWG power conductors for maximum power transfer

Application

• Data Storage and Acquisition
• Printer Interfaces
• Video Transfer or Cameras
• Portable Data Storage
• Gaming hardware and interfaces
